Product Code: 808073

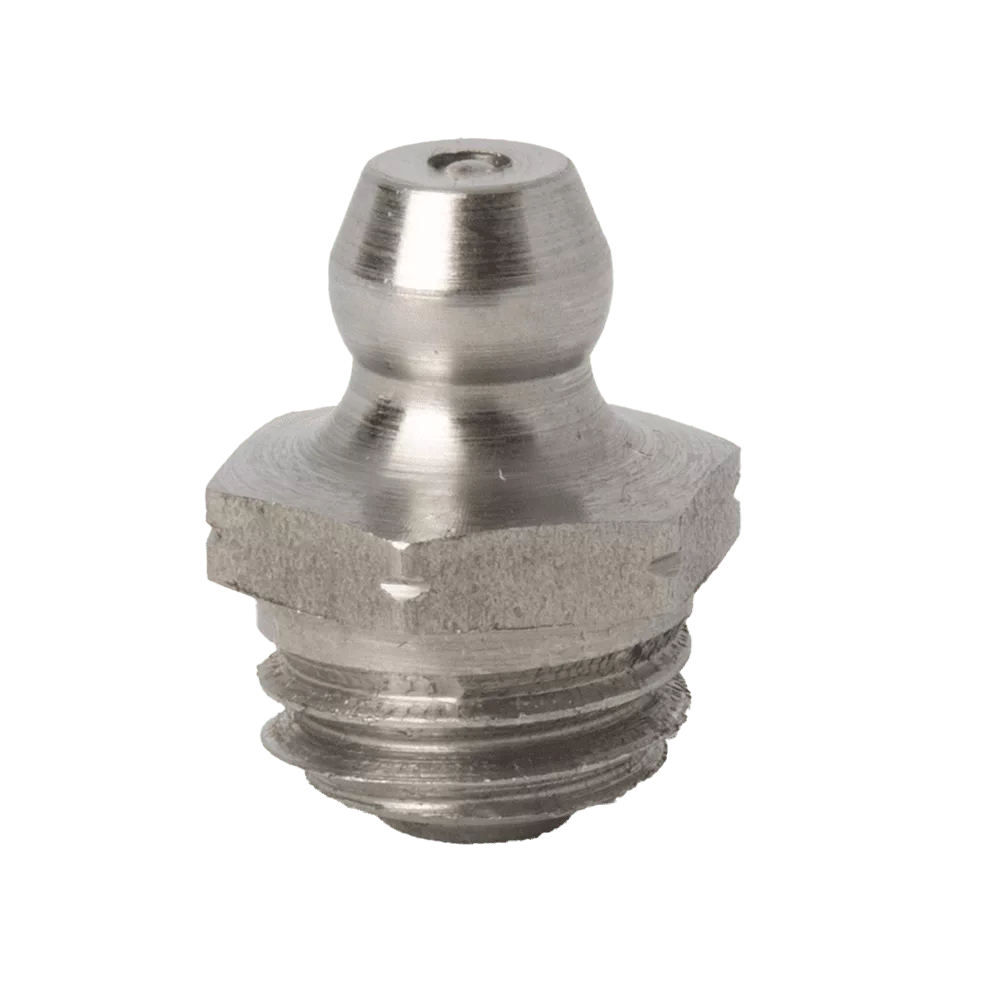

M10 x 1.5 Taper Straight Grease Fitting 303 Stainless Steel
808073
Description
M10 x 1.5 Taper Hydraulic Straight Grease Fitting. DIN 71412 Form A (H1)
303 Grade Stainless Steel Body (A2) with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Also Available in 316 Grade Stainless Steel. Code Number 316M105.
Additional information
| Weight | 11 kg |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.6 |
| Dimension A (mm) | 15.2 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.8 |
| Hardened | No |
| Hole | M10 x 1.5 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1.5 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
