Product Code: 225552

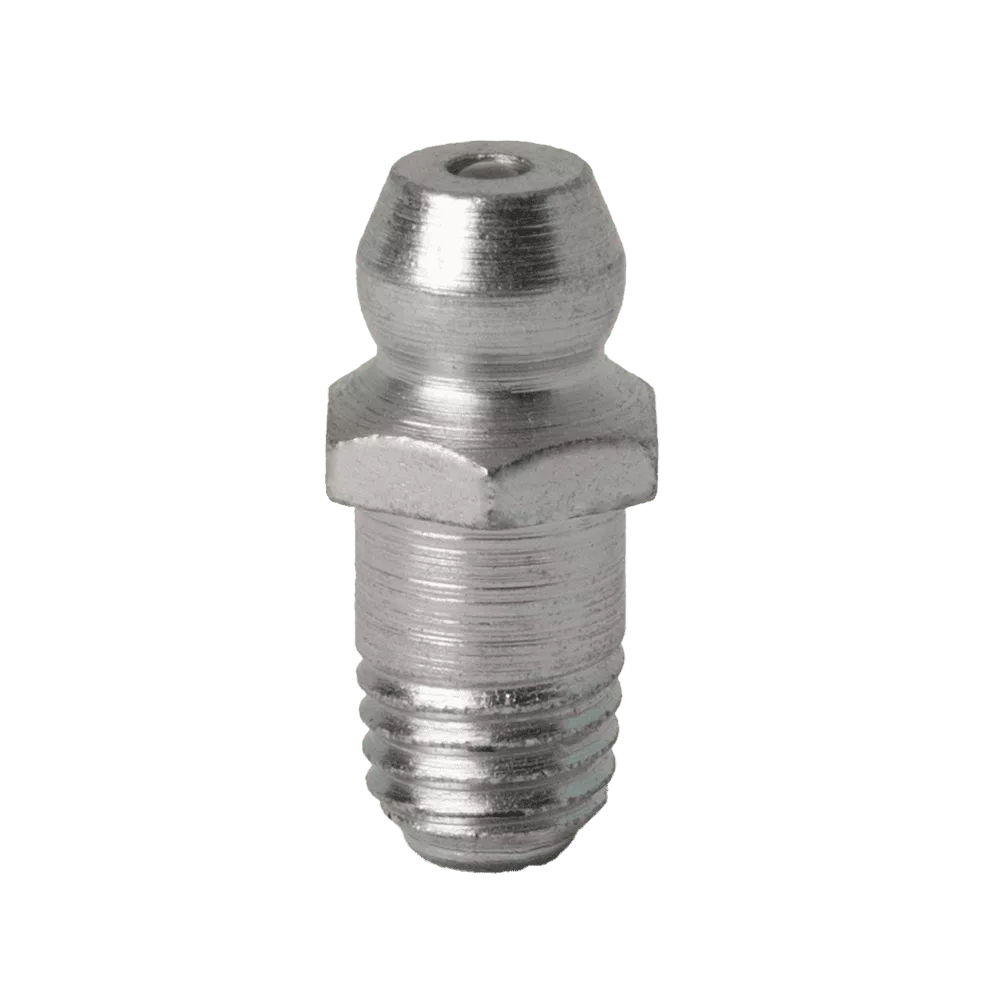

1/4″ x 28 Self Forming Straight Grease Fitting

225552

Description

1/4″ x 28 Special Taper Thread Forming Thread Hydraulic Straight Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.

Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/4 x 28 thread is 5.84-5.97mm (Ref SAE J534) but can be dependent on the material.

Avoid chamfering as a sharp edge to the hole helps the thread bite

Additional information
Weight 14 kg
Angle

Straight

Ball Check

Yes

Dimension A (Inch)

0.67

Dimension A (mm)

17

Dimension B (Inch)

0.36

Dimension B (mm)

9.1

Hardened

Yes

Hole

ref. SAE J534

International

Thread SAEJ534

Product Type

Hydraulic Grease Nipple

Material

Mild Steel

Spanner Wrench Size

5/16" Hexagon

Thread

1/4 x 28 Special Taper

Thread Type

Self-forming

Zinc Plating

Zinc Trivalent Passivate
