Product Code: 617945

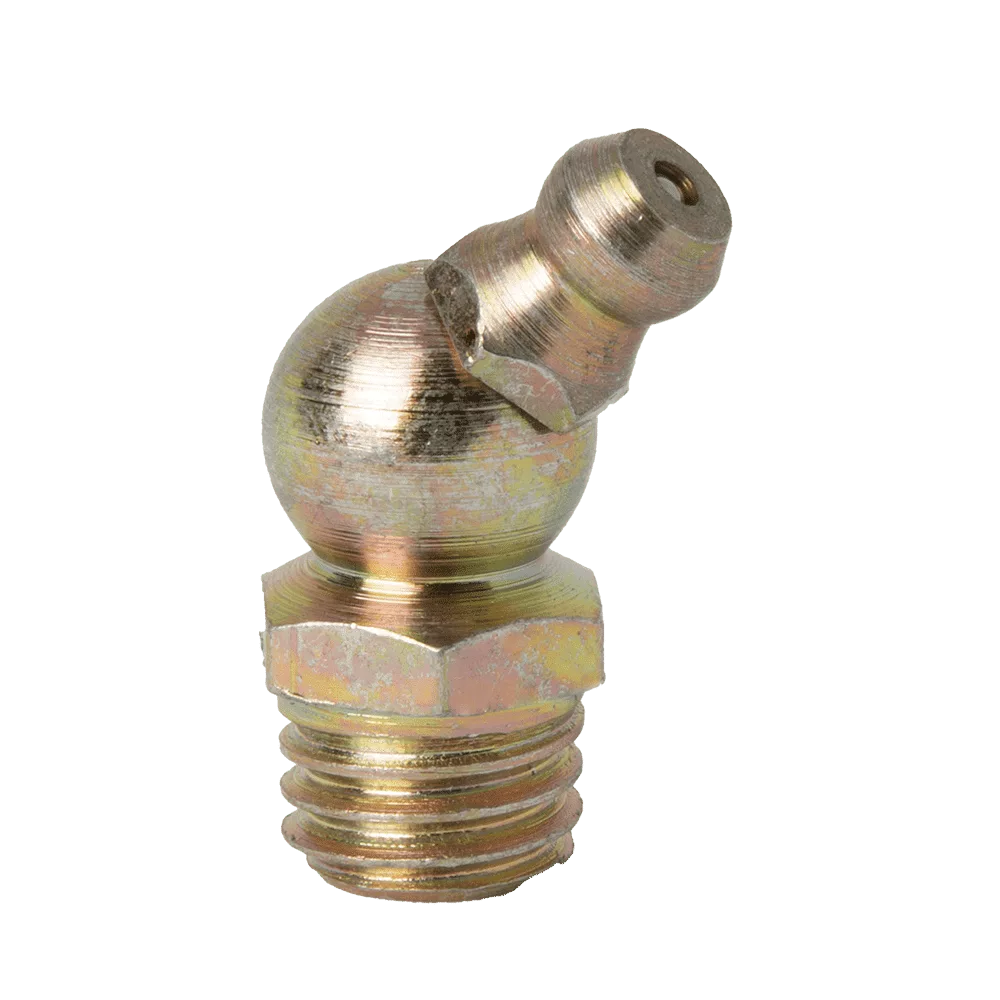

M10 x 1.5 Taper 45˚ Grease Fitting
617945
Description
M10 x 1.5 Taper 45° Hydraulic Grease Fitting to DIN 71412 Type B (H2)
Zinc Yellow Chromate Finish.
Also Available in Zinc Trivalent Passivate Finish. Code Number 617946. Limited Availability.
303 Grade Stainless Version. Code Number 817345
316 Grade Stainless Steel Version. Code Number 316M10545
Additional information
| Weight | 11 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 1 |
| Dimension A (mm) | 25.5 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.41 |
| Dimension C (mm) | 10.4 |
| Hardened | Yes |
| Hole | M10 x 1.5 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1.5 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Yellow Chromate |
