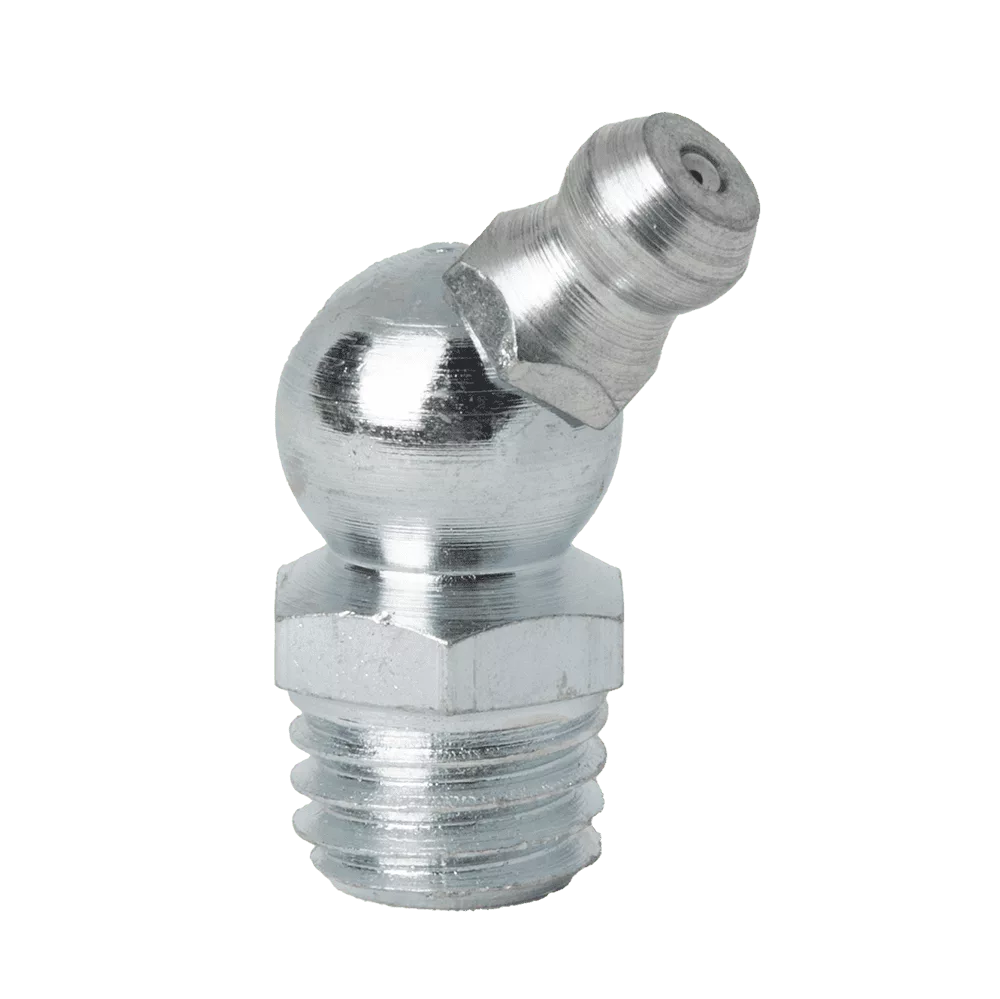

M10 x 1.5 Taper 45˚ Grease Fitting
617946
Description
M10 x 1.5 Taper 45° Grease Fitting to DIN 71412 Type B (H2)
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available in Zinc Yellow Chromate Finish. Code Number 617945. Limited Availability.
303 Grade Stainless Version. Code Number 817345
316 Grade Stainless Steel Version. Code Number 316M10545
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 1 |
| Dimension A (mm) | 25.5 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.41 |
| Dimension C (mm) | 10.4 |
| Hardened | Yes |
| Hole | M10 x 1.5 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1.5 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
