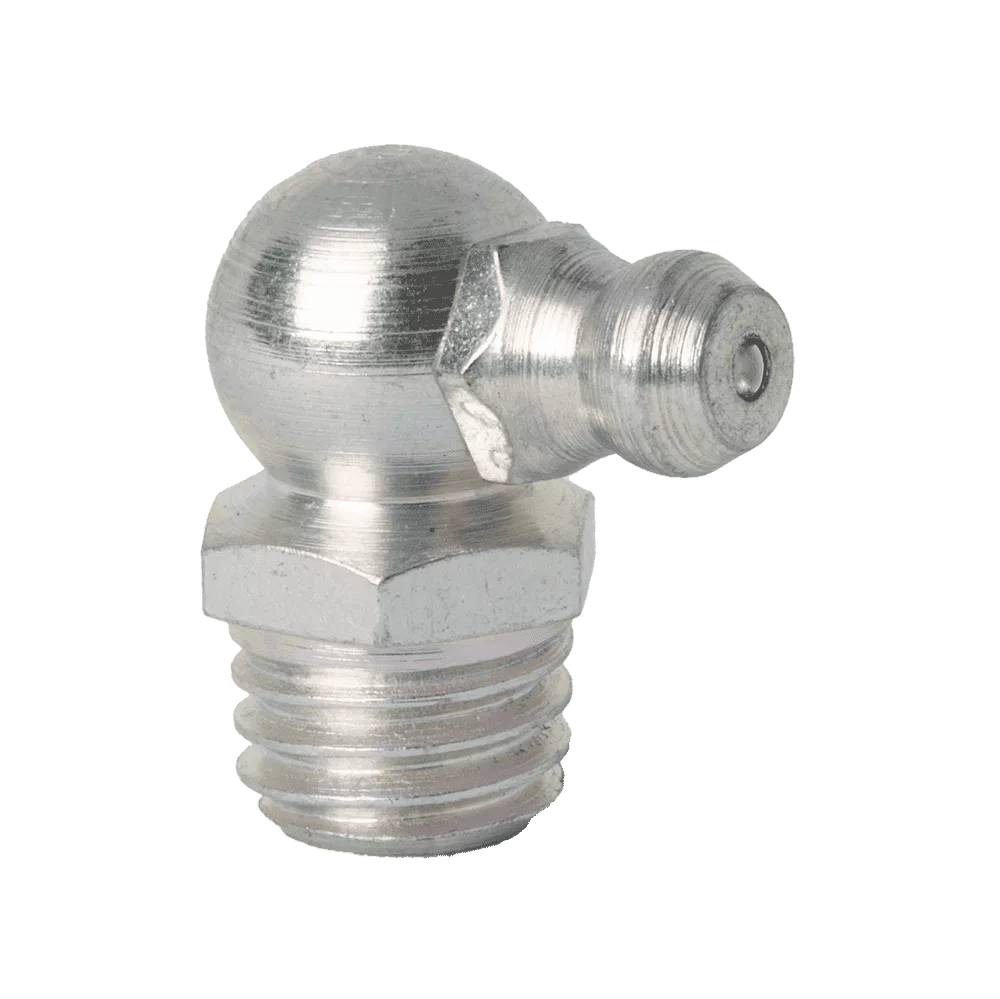

M10 x 1.5 Taper 90˚ Grease Fitting
617991
Description
M10 x 1.5 Taper 90° Hydraulic Grease Fitting to DIN 71412 Type C (H3)
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available in Zinc Yellow Chromate Finish. Code Number 617990. Limited Availability.
303 Grade Stainless Version. Code Number 817390
316 Grade Stainless Steel Version. Code Number 316M10590
Additional information
| Weight | 11 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.83 |
| Dimension A (mm) | 21 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.5 |
| Dimension C (mm) | 12.8 |
| Hardened | Yes |
| Hole | M10 x 1.5 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | M10 x 1.5 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
