Product Code: HP225616

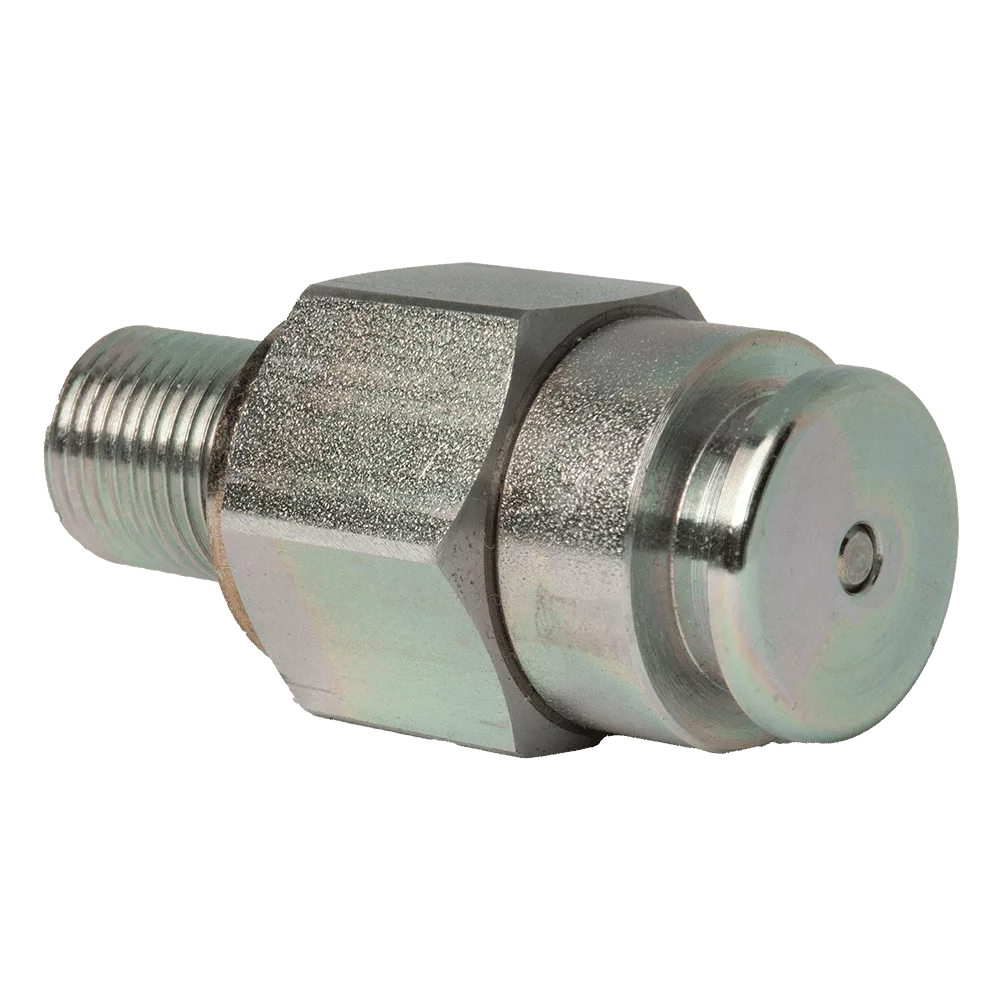

High Pressure Leak Proof 22mm Button Head 56mm Long M16 x 1.5

HP225616

Description

High Pressure Leak Proof 22mm Diameter Button Head 56mm long – M16 x 1.5 thread with relief slot

TRANSPORT – A nylon protective cap is fitted over the M16 thread and the complete unit is packed in a nylon net sleeve for added protection when in transit.

SEALS – This button head fitting has a steel check valve and Nitrile “o”ring, a strong stress relieved spring, a Nitrile “o”ring seals the button head unit to the hexagon adaptor. A bonded
washer is supplied to seal the M16 x 1.5 thread on installation. This sealing washer is always recommended.

HAZARD – CARE MUST BE TAKEN as the relief slot will allow a release of pressure when slackening the hydraulic track tensioning system, which may be at high pressure. (consult your equipment manufacturer). Personal protection should be worn to avoid injury.

GREASING – 22mm DIN high pressure coupler must be used for greasing

OPERATION – This fitting is designed to withstand pressure of up to 10,000 psi (69 MPa) whilst charging the tensioning system. It is advised that a non-return valve be fitted to protect the seals when operating the tracks in harsh environments and uneven ground.

REMOVAL/INSTALLATION -To remove or install use a 27mm across flats hexagon spanner (wrench) ONLY.

DO NOT USE THE HEAD OF THE FITTING OR THE 25MM DIAMETER AS THIS MAY JEOPARDISE THE INTERGRITY OF THE ASSEMBLY.

DO NOT ATTEMPT TO DISMANTLE THIS FITTING



Additional information
Angle

Straight

Ball Check

High Pressure

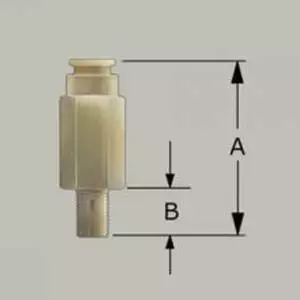

Dimension A (mm)

60

Dimension B (mm)

23

Hardened

No

Hole

M16 x 1.5

International

DIN 3404

Product Type

High Pressure/Leakproof

Material

Mild Steel

Spanner Wrench Size

27mm Hexagon

Thread

M16 x 1.5

Thread Type

Metric

Zinc Plating

Zinc Yellow Chromate
