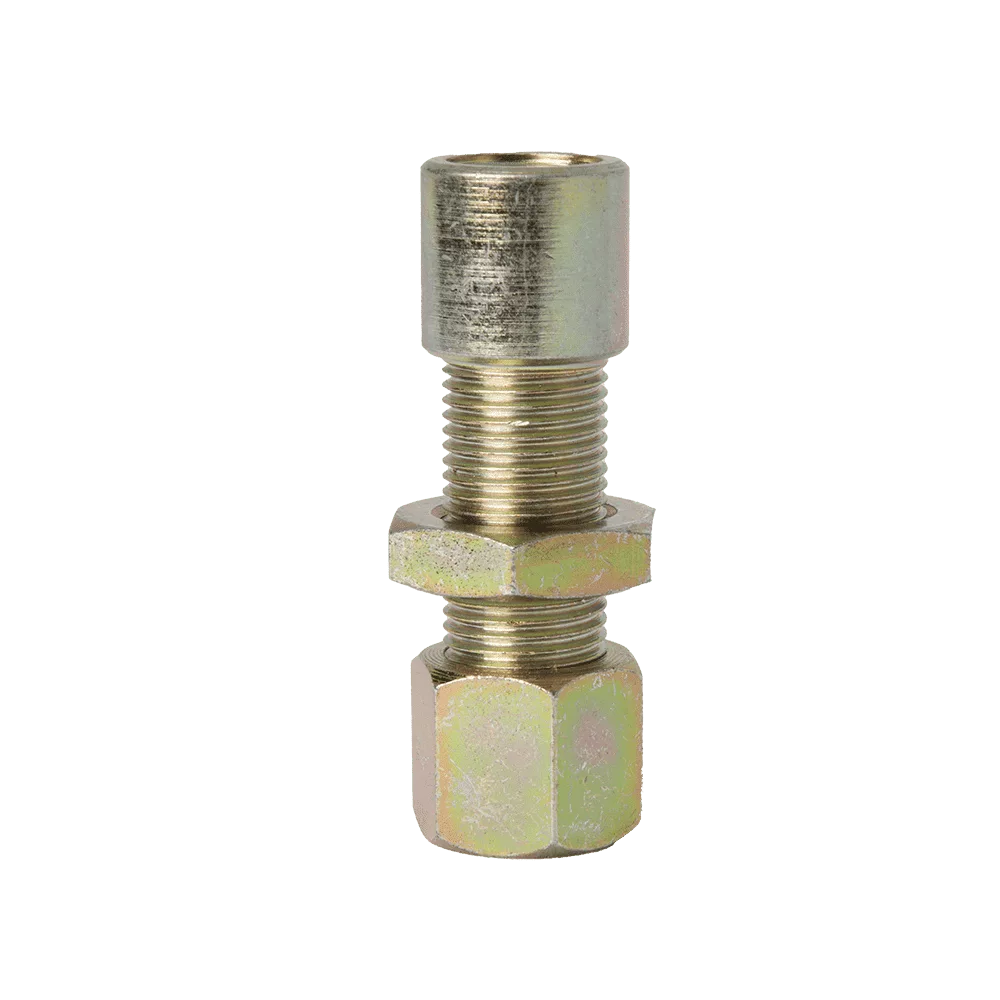

Battery Plate Adaptor for 6mm Pipe
911137
Description
Battery Plate Adaptor for 6mm dia. Pipe – 13mm (1/2″) Thick Plate, Lock Nut, Union (compression) Nut and Brass Olive (sleeve)
1/8″ x 28 BSP Internal Thread. M11 x 1 External Thread.
Mild Steel. Zinc Plated.
Battery Plate adaptors are use when difficult access requires that the grease fitting is piped to the point of lubrication
The adaptor can be screwed through the plate and secured with the lock-nut prior to the compression fitting being attached using the union nut and olive.
GREASE NIPPLE OPTIONAL EXTRA
Can be combined as a collection lubrication points and grease nipples straights or angles can be fitted
Stainless steel version is 811137
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 2 |
| Dimension A (mm) | 45 mm |
| Dimension B (Inch) | for 1/2 thick plate |
| Dimension B (mm) | for 13mm thick plate |
| Hardened | No |
| Hidden | No |
| Product Type | Battery Plate Adaptor/Bulk Head Fitting |
| Material | Mild Steel |
| Product Long | Long |
| SB quantity | on request |
| Special | Yes |
| Stock Item | Class 3 Parts |
| Thread Type | Metric |
| Zinc Plating | Yes |
