Product Code: 91121801W

Battery Plate Adaptor for 3/16″ dia. Pipe 20 mm (3/4″) Thick Plate Grease Fitting, Lock Nut, Union Nut and Olive

91121801W

Description

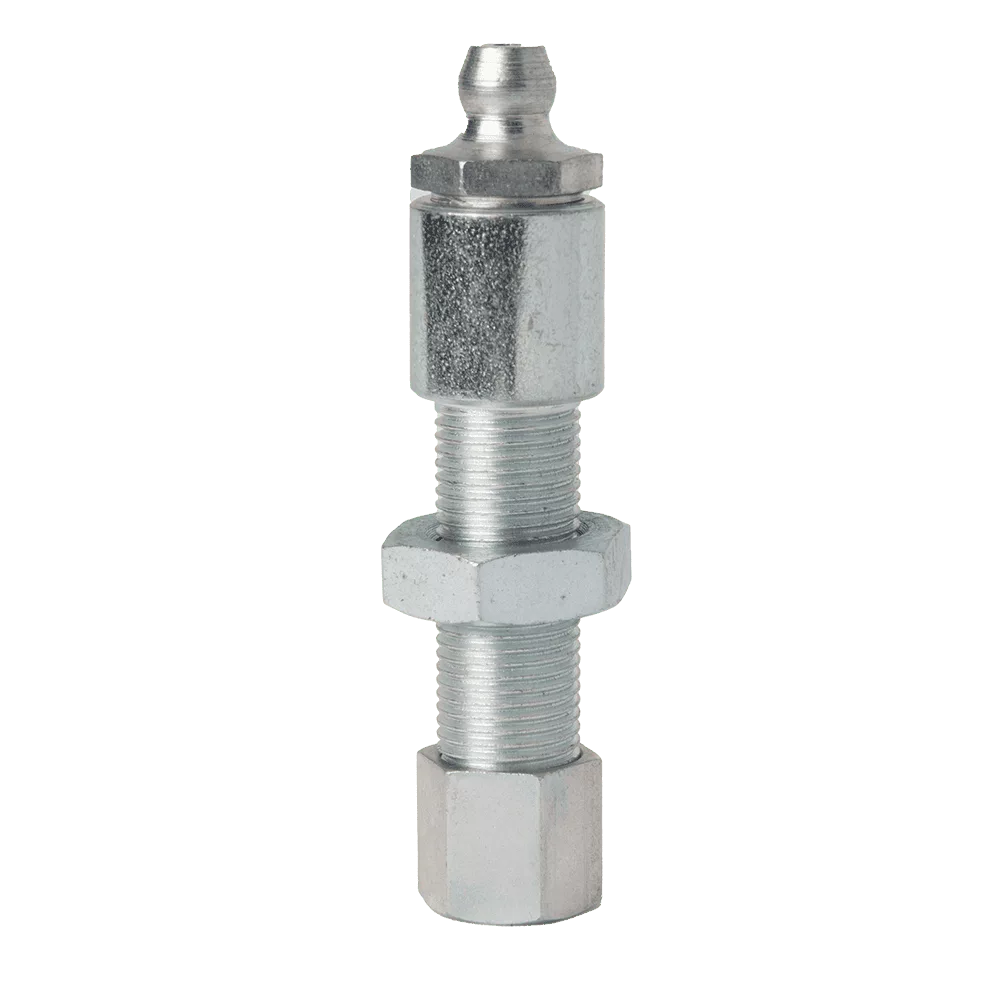

Battery Plate Adaptor for 3/16″ Diameter Pipe.
Suitable for up to 20 mm (3/4″) Thick Plate. Complete with Grease Fitting, Lock Nut, Union Nut and Olive.
Zinc Plated with Trivalent Passivate Finish.
RoHS and REACH Compliant.

Battery Plate adaptors are use when difficult access requires that the grease fitting is piped to the point of lubrication.

The adaptor can be screwed through the plate and secured with the lock-nut prior to the compression fitting being attached using the union nut and olive. Note barrel olives (as supplied here) are for use with metallic pipe. Universal olives for nylon pipes can be purchased separately.



Additional information
Angle

Straight

Ball Check

Yes

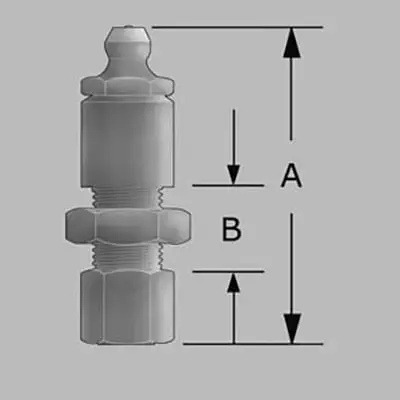

Dimension A (Inch)

2 3/8

Dimension A (mm)

60

Dimension B (Inch)

for 3/4 thick plate

Dimension B (mm)

for 20mm thick plate

Hardened

Yes

Hole

1/8 British Pipe

Product Type

Battery Plate Adaptor/Bulk Head Fitting

Material

Mild Steel

Spanner Wrench Size

11mm Hexagon

Thread

G1/8 x 28 BSPF

Thread Type

British

Zinc Plating

Zinc Trivalent Passivate
