Product Code: 200022
5/16″ x 32 UNEF Straight Grease Fitting AS15002-2P
200022
Description

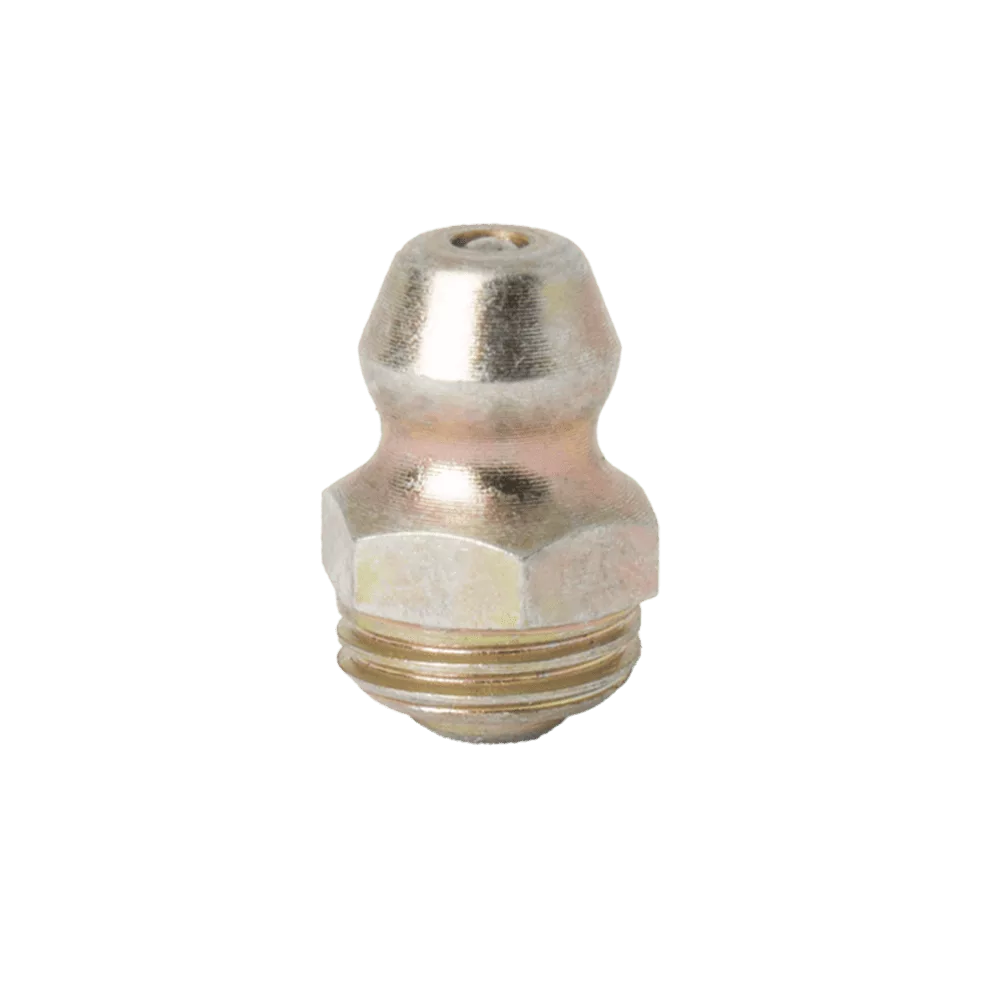

5/16″ x 32 UNEF Straight Hydraulic Grease Fitting.
Hardened Zinc Plated Steel Body. Stress Relieved Steel Spring and Steel Ball.
Manufactured according to SAE AS 15002-2P
Material Reference AS35411
Other reference SAE J534
Material Certificates Available.
Additional information
| Weight | 12 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.526 Max |
| Dimension A (mm) | 13.4 Max |
| Dimension B (Inch) | 0.125 |
| Dimension B (mm) | 3.1 |
| Hardened | Yes |
| Hole | 1/4 UNF |
| International | AS15002-1P |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9/32" Hexagon |
| Special | Yes |
| Thread | 5/16 x 32 UNEF |
| Thread Type | American |
| Zinc Plating | Zinc Yellow Chromate |
