Product Code: 311991

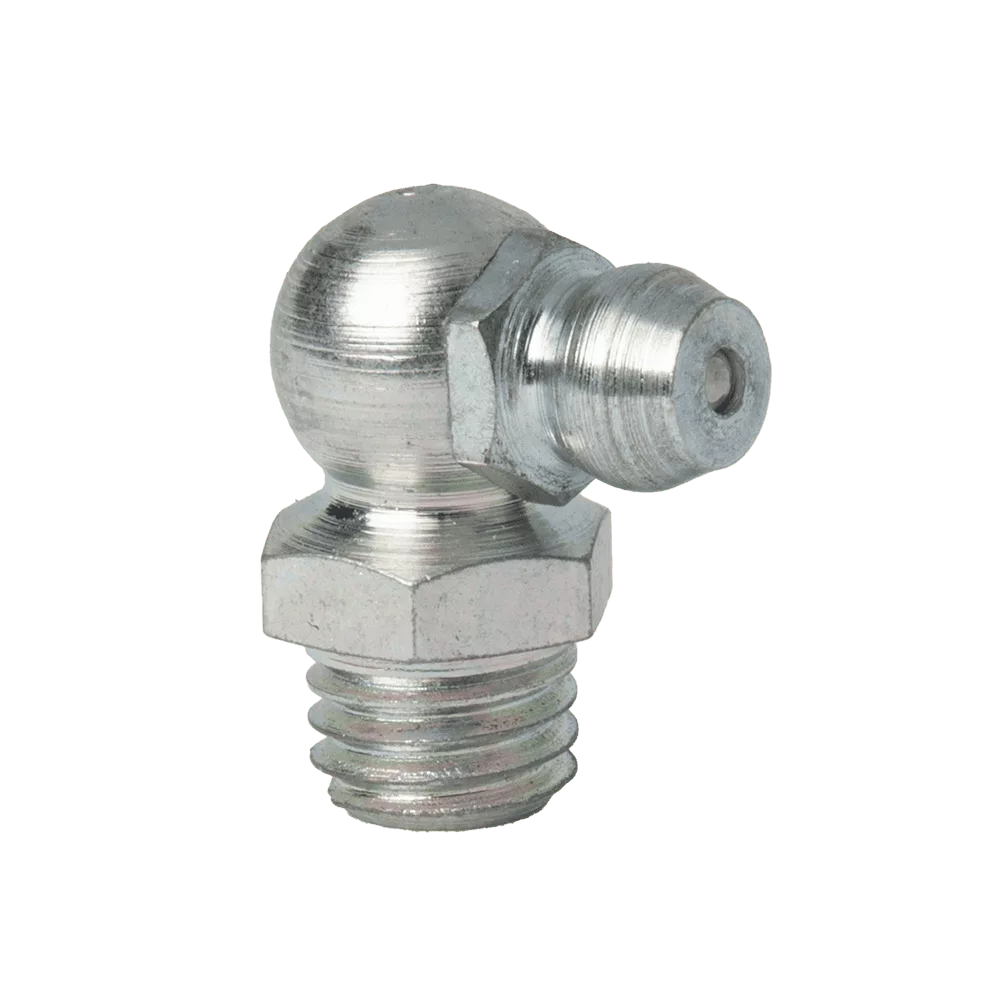

5/16″ x 22 BSF 90˚ Grease Fitting
311991
Description
5/16″ x 22 BSF Straight Hydraulic Grease Fitting.
Case Hardened and Zinc Plated with Trivalent Passivate Finish.
RoHS and REACH Compliant.
Ball Check to prevent the ingress of dirt.
Stress Relieved Spring for prolonged service life.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.71 |
| Dimension A (mm) | 18 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.42 |
| Dimension C (mm) | 10.7 |
| Hardened | Yes |
| Hole | 5/16 BSF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 5/16 x 22 BSF |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
