Product Code: 313691

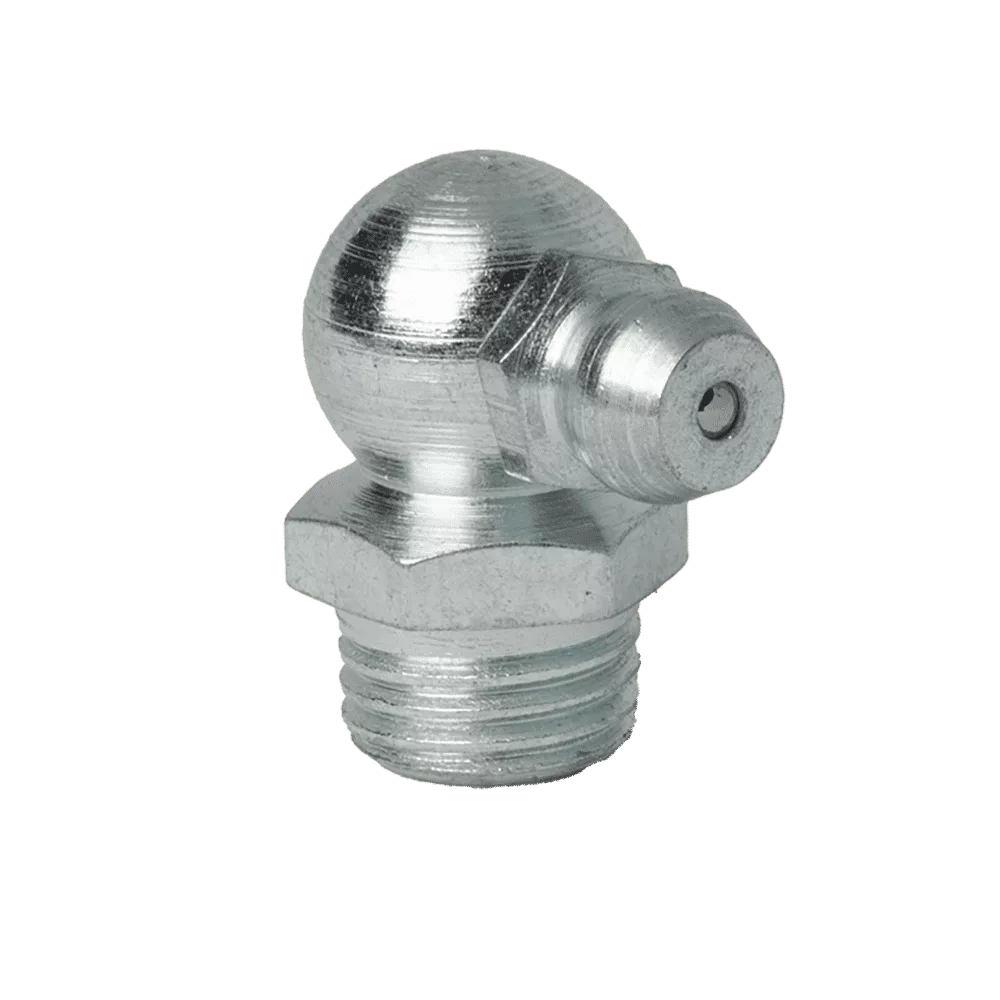

3/8″ x 24 UNF 90° Grease Fitting
313691
Description
3/8″ x 24 UNF 90° Hydraulic Grease Fitting
Mild Steel. Zinc Plated with Trivalent Passivate.
Stress Relieved Spring for enhanced performance.
RoHS and REACH compliant.
Also available in Yellow Chromate Finish Code 313690 – Limited Availability.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.75 |
| Dimension A (mm) | 19 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.47 |
| Dimension C (mm) | 11.9 |
| Hardened | Yes |
| Hole | 3/8 UNF |
| International | BS1486 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | 3/8 x 24 UNF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
