Product Code: 223040

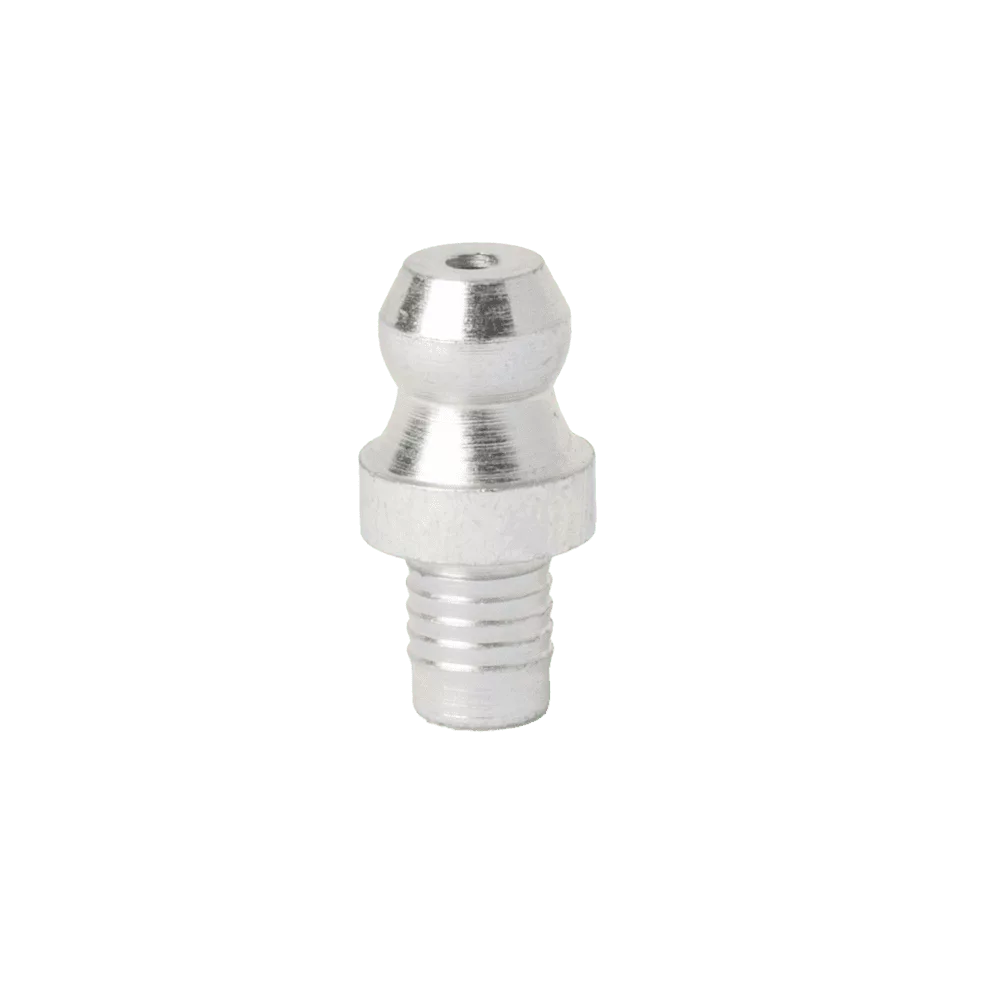

3/16” Drive Fit Grease Fitting No Ball Check
223040
Description
3/16″ Drive Fit Straight Hydraulic Grease Fitting. No Ball Check.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
For use in a 3/16″ Diameter Hole.
Low Pressure Only.
Also available with Zinc Yellow Chromate Finish. Code Number 203040.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | Straight |
| Ball Check | No |
| Dimension A (Inch) | 0.62 |
| Dimension A (mm) | 15.7 |
| Dimension B (Inch) | 0.25 |
| Dimension B (mm) | 6.4 |
| Hardened | Yes |
| Hole | 3/16 nominal |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Diameter |
| Thread | 3/16 Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Yellow Chromate |
