Product Code: 808009

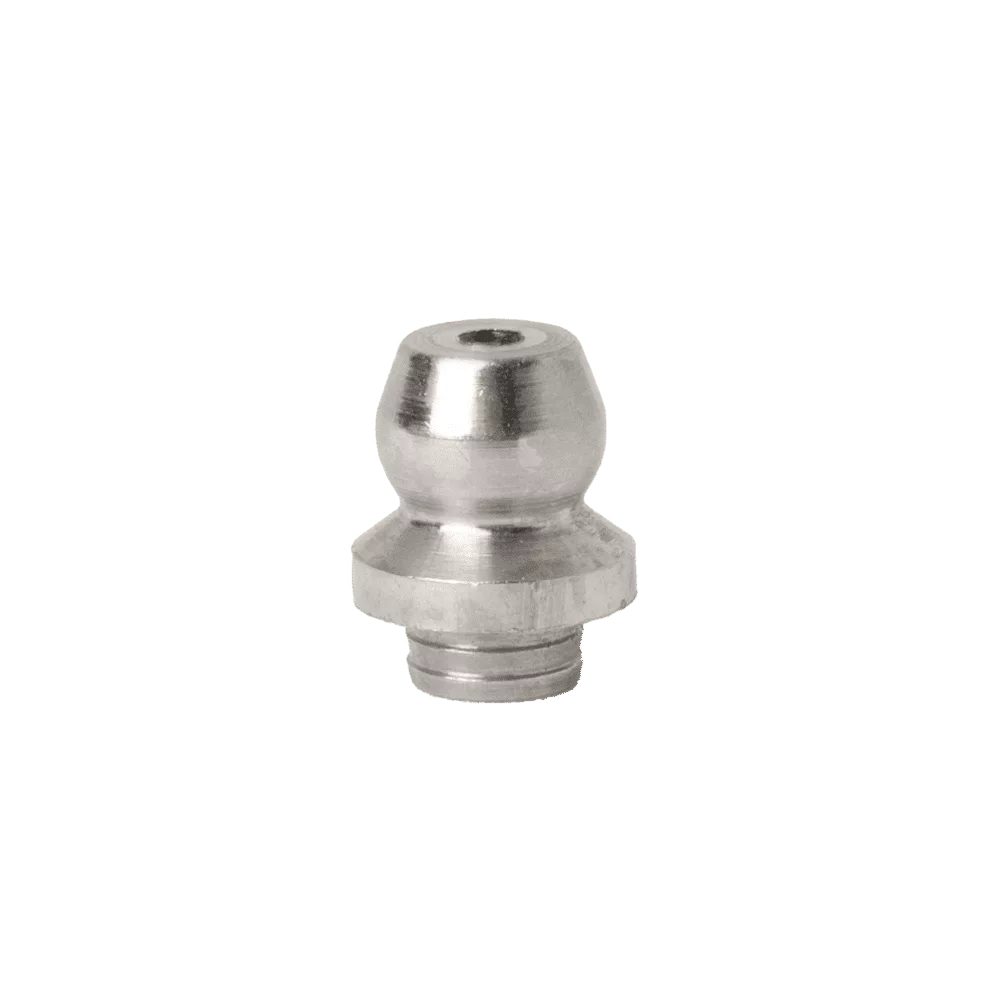

3/16” Drive Fit No Ball Check Straight Grease Fitting 303 Stainless Steel

808009

Description

This drive fit has a serrated shank without an undercut. The hole size is nominally¬†3/16″ dia. but must be determined in the application by the user.

Note excessive interference between the fitting and the hole may lead to a looser fit.

LOW PRESSURE APPLICATIONS ONLY

This is an extremely SHORT drive fit used under low pressure and is NOT recommended for a hydraulic coupler which, when disconnected may dislodge the grease nipple.



Additional information
Angle

Straight

Ball Check

No

Dimension A (Inch)

0.39

Dimension A (mm)

9.9

Dimension B (Inch)

0.09

Dimension B (mm)

2.3

Hardened

No

Hole

3/16 nominal

Product Type

Hydraulic Grease Nipple

Material

303 Stainless

Spanner Wrench Size

5/16" Diameter

Thread

3/16 Drive Fit

Thread Type

Drive

Zinc Plating

No
