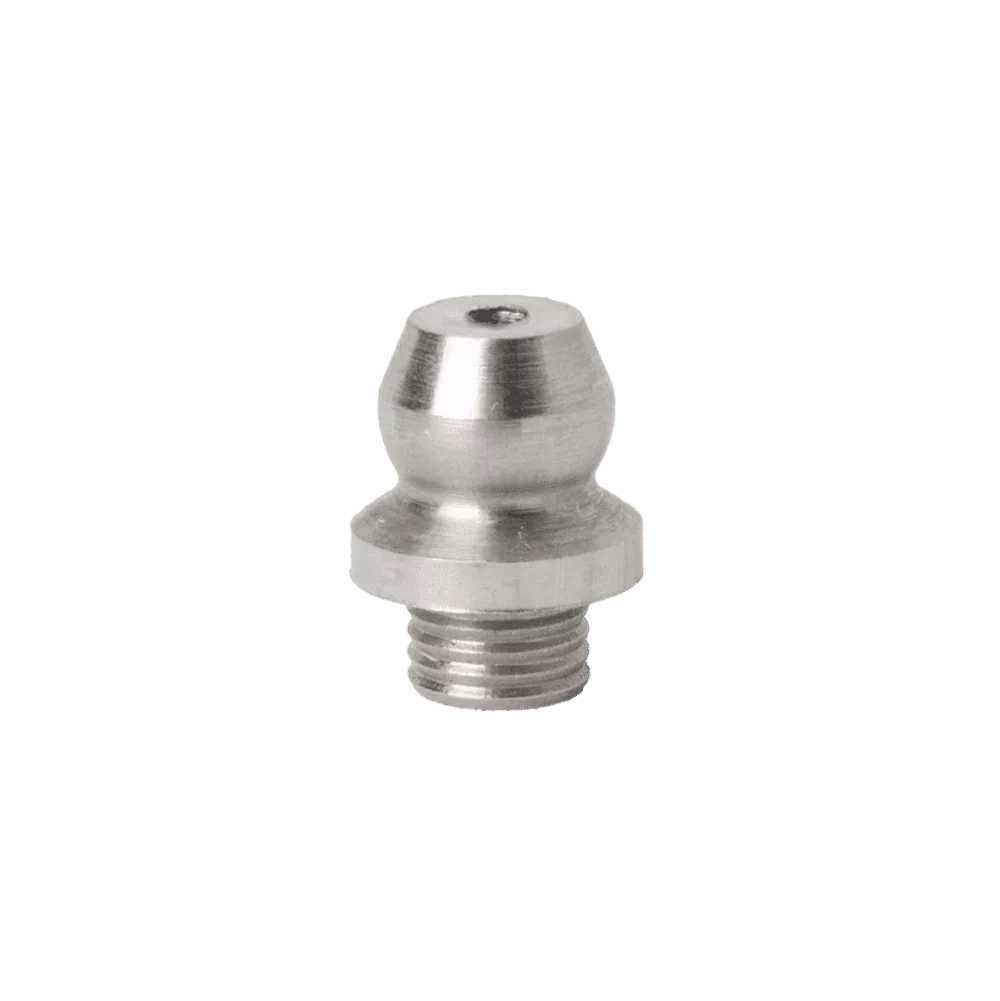

3/16” Drive Fit No Ball Check Straight Grease Fitting 303 Stainless Steel
803008
Description
This drive fit straight grease fitting has a serrated shank without an undercut. The hole size is nominally 3/16in but it must be determined by the user.
Note excessive interference between the fitting and the hole may lead to a looser fit.
LOW PRESSURE APPLICATIONS ONLY
This is an extremely SHORT drive fit used under low pressure and is NOT recommended for a hydraulic coupler which, when disconnecting may dislodge the grease nipple.
Improved form of annular serrations
Steel version is code 223008
Additional information
| Angle | Straight |
|---|---|
| Ball Check | No |
| Dimension A (Inch) | 0.41 |
| Dimension A (mm) | 10.4 |
| Dimension B (Inch) | 0.12 |
| Dimension B (mm) | 3 |
| Hardened | No |
| Hidden | No |
| Hole | 3/16 nominal |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Product Long | Normal |
| SB quantity | on request |
| Spanner Wrench Size | 5/16" Diameter |
| Special | Yes |
| Stock Item | Class 4 Parts |
| Thread | 3/16 Drive Fit |
| Thread Type | Drive |
| Zinc Plating | No |
