Product Code: 316324001

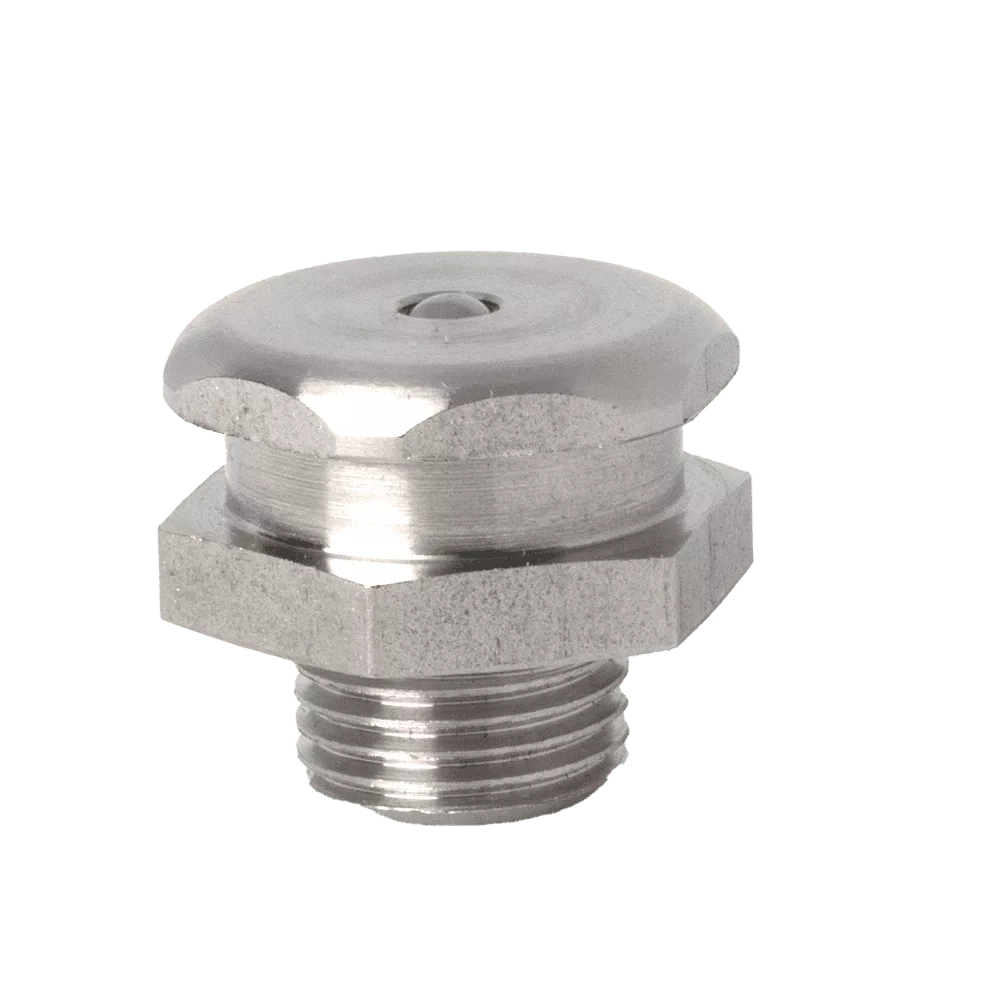

1/8 x 28 BSP (G1/8″) British Button Head 316 Stainless Steel (A4)
316324001
Description
1/8″ x 28 BSP (G1/8″) British Double Hexagon Button Head to BS1486. (T1/B)
316 (A4 or V4A) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 824001.
Additional information
| Ball Check | Yes |
|---|---|
| Dimension A (Inch) | 0.59 |
| Dimension A (mm) | 15 |
| Dimension B (Inch) | 0.24 |
| Dimension B (mm) | 6.1 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| International | BS1486 |
| Product Type | Button Head Grease Fitting |
| Material | 316 Stainless |
| Spanner Wrench Size | 15mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | No |
