Product Code: 225578

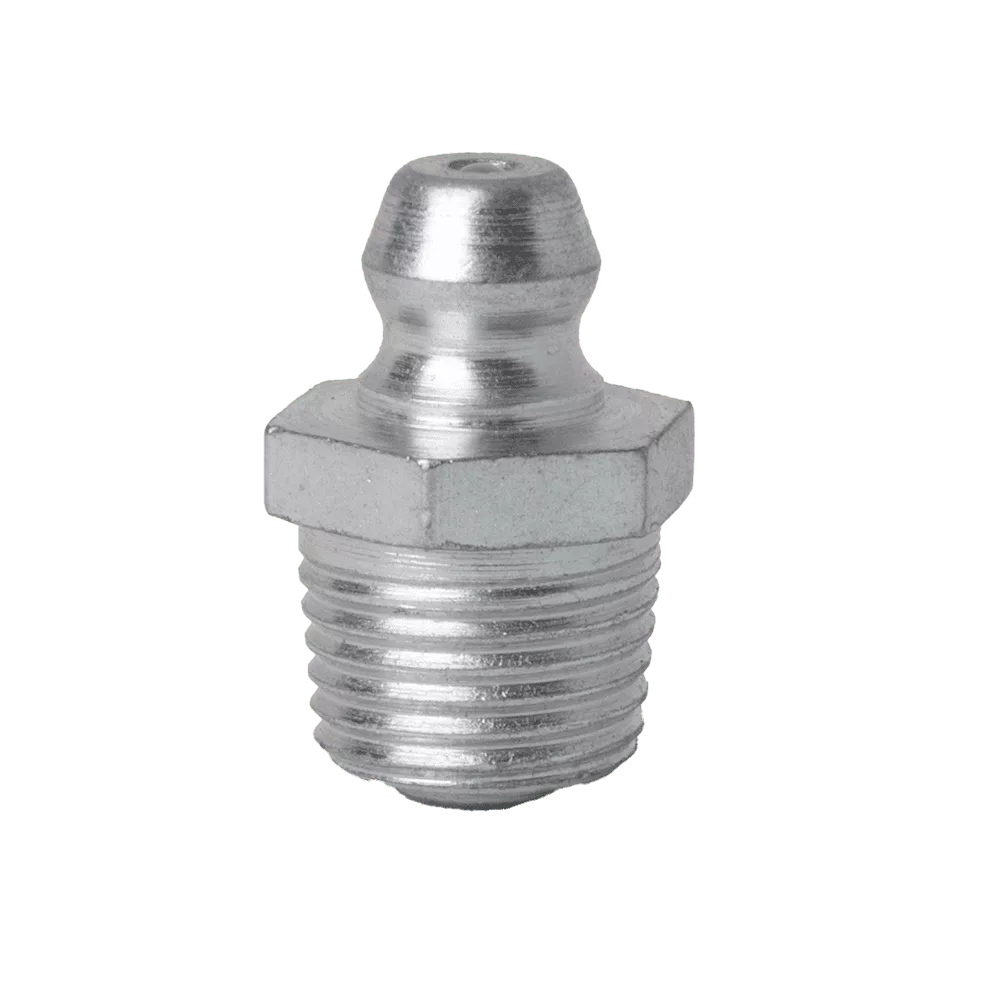

1/8″ x 27 Self Forming Straight Grease Fitting

225578

Description

1/8″ x 27 Thread Forming Thread. Straight Hydraulic Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.

Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/8″ x 27 thread is 9.47-9.65mm (Ref SAE J534) but can be dependent on the material.

Avoid chamfering as a sharp edge to the hole helps the thread bite.

Also available with Zinc Yellow Chromate. Code 205578. Limited Availability.

Additional information
Weight 14 kg
Angle

Straight

Ball Check

Yes

Dimension A (Inch)

0.7

Dimension A (mm)

17.8

Dimension B (Inch)

0.32

Dimension B (mm)

8.1

Dimension C (Inch)

1/2" across corners

Dimension C (mm)

12.7 across corners

Hardened

Yes

Hole

ref. SAE J534

International

Thread to SAE J534

Product Type

Hydraulic Grease Nipple

Material

Mild Steel

Spanner Wrench Size

7/16" Hexagon

Thread

1/8 x 27 Special Taper

Thread Type

Self-forming

Zinc Plating

Zinc Trivalent Passivate
