1/8” x 27 PTF Special Short 45° Grease Fitting
231688
Description

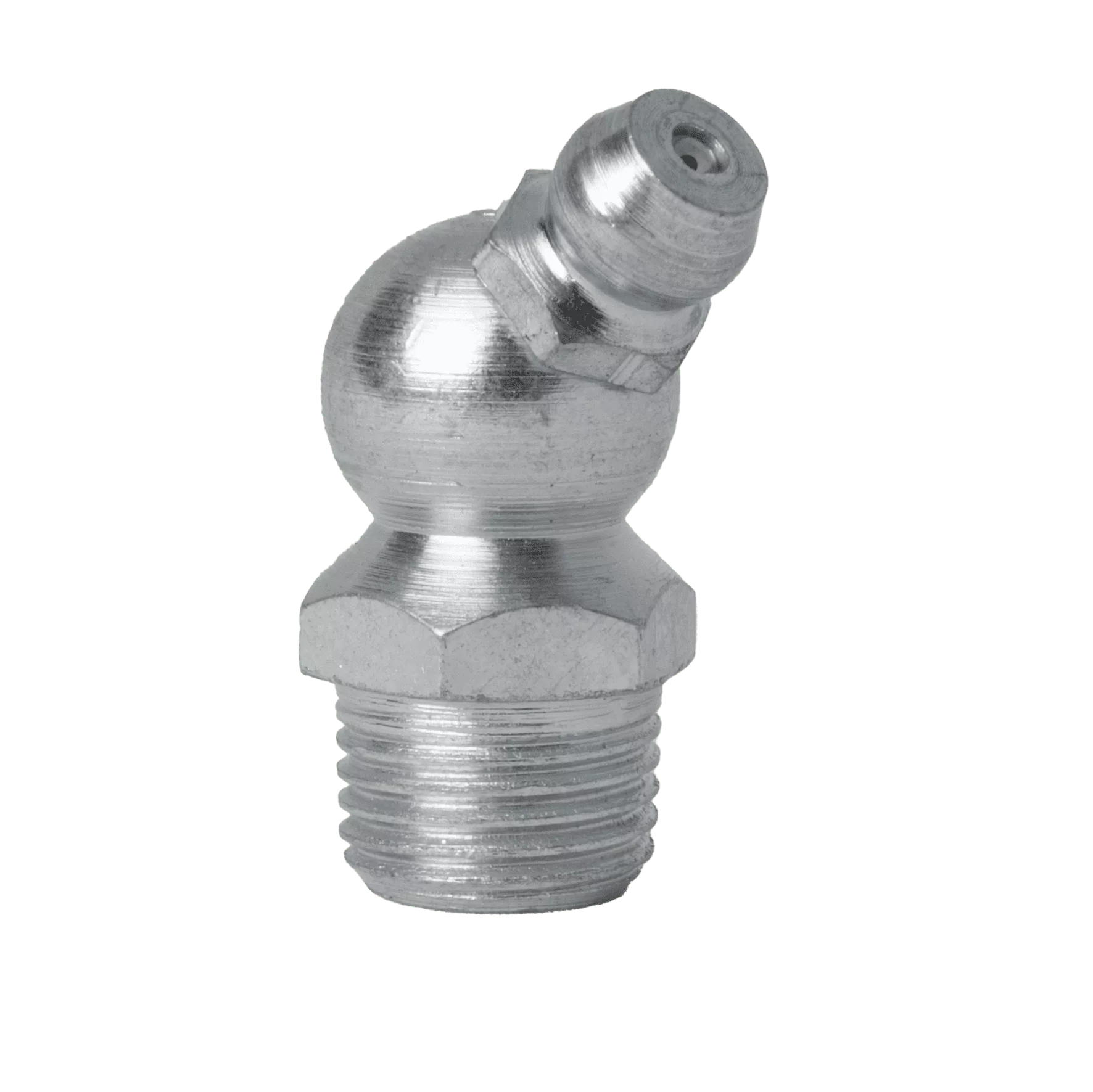

1/8″ x 27 PTF Special Short 45° Grease Fitting.
Premium Quality Steel. Zinc Plated with Trivalent Passivate to ensure REACH and RoHS Compliance.
Case Hardened Tip with Carbon Steel Ball Check and stress relieved spring for long service life.
Also available with Zinc Yellow Chromate Finish. Code Number 211688. Limited Availability.
For more severe service conditions you may wish to consider our Stainless Steel versions.
AISI 303 (A2 or V2A) Grade Stainless Steel Version also available. Code Number 818245.
AISI 316 (A4 or V4A) Grade Stainless Steel Version also available. Code Number 316P1845
All Kingfisher Grease Fittings are manufactured exclusively in our factory premises in Leeds, Britain.
All parts are fully traceable back to raw materials and we can provide material certificates on request.
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.98 |
| Dimension A (mm) | 24.9 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.38 |
| Dimension C (mm) | 9.7 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAEJ534 |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
