Product Code: 81572190
1/8″ x 27 PTF 90° Grease Fitting Stainless Steel AS15721-5
81572190
Description

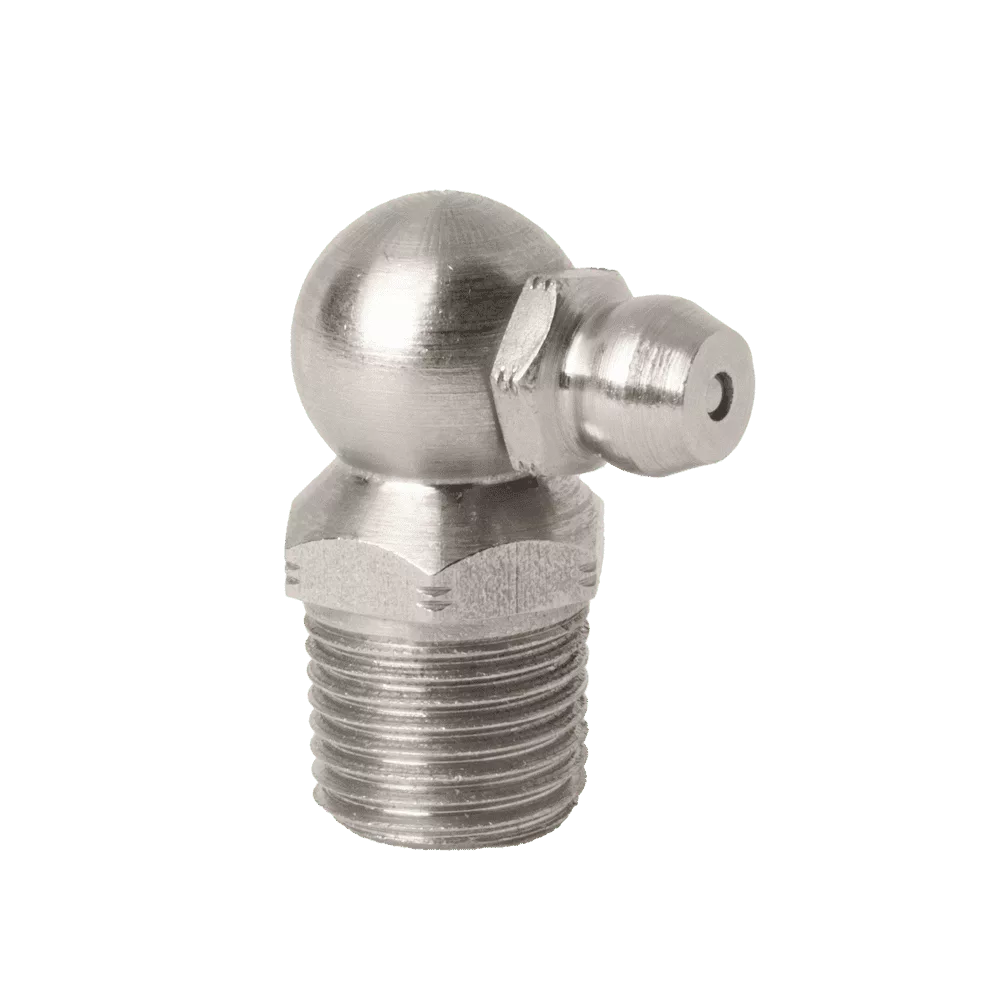

1/8″ x 27 PTF 90° Hydraulic Grease Fitting
Reference SAE AS 15721-5
303 Grade (A2) Stainless Steel Body with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 1 |
| Dimension A (mm) | 25.4 |
| Dimension B (Inch) | 0.37 |
| Dimension B (mm) | 9.4 |
| Dimension C (Inch) | 0.625 Max |
| Dimension C (mm) | 15.9 Max |
| Hardened | No |
| Hole | 1/8 American Pipe |
| International | AS 15005-1 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | No |
