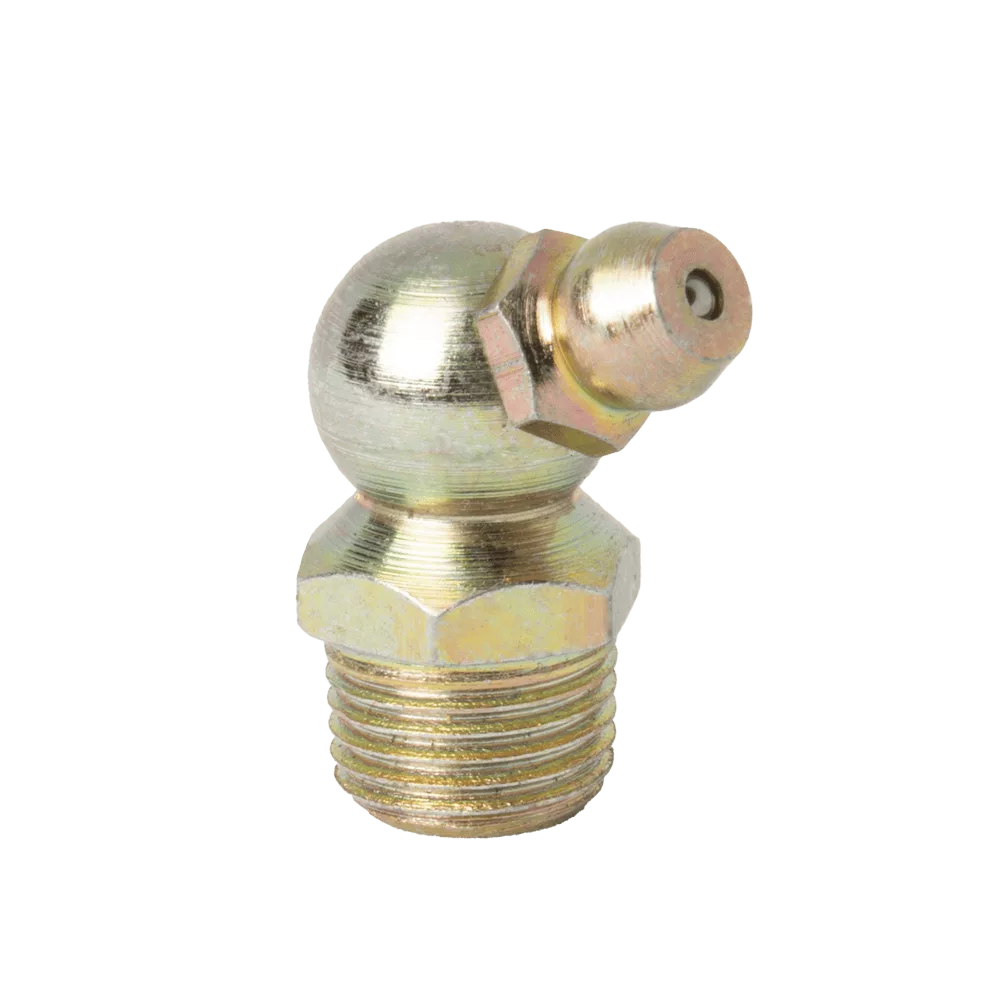

1/8″ x 27 PTF 65° Grease Fitting AS15003-5P
437612
Description
1/8″ x 27 PTF Special Short 65° Hydraulic Grease Fitting
Hardened Steel Zinc Plated Body. Stress Relieved Steel Spring and Steel Ball.
Manufactured according to SAE AS 15003-5P
Material Reference AS35411
Other reference SAE J534
Material Certificates Available.
Available For Special Order
Zinc-Nickel Plated – 437612U (AS15003-5U)
Cadmium Plated – 437612C (AS15003-5C)
Additional information
| Angle | 65 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.969 Max |
| Dimension B (Inch) | 0.28 |
| Hardened | Yes |
| Hole | 1/4 UNF |
| International | Aerospace, AS 15001-1P |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Yellow Chromate |
