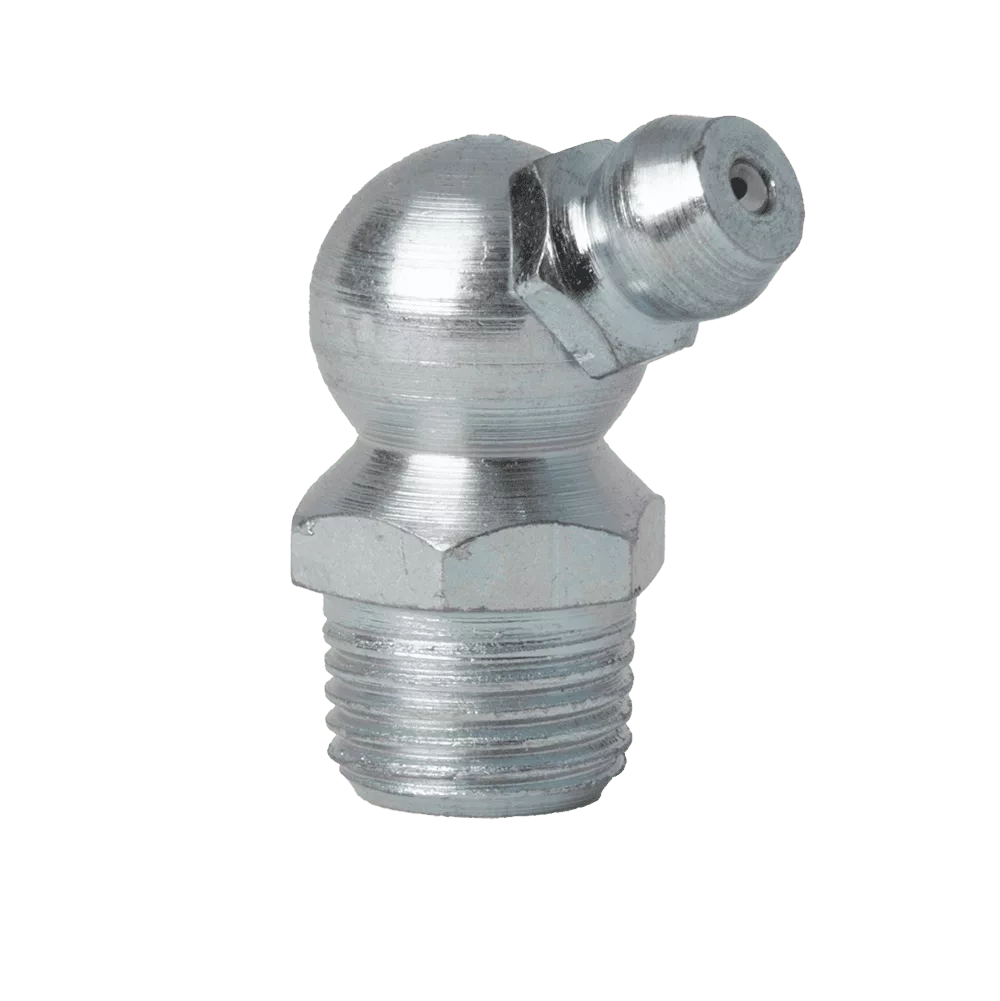

1/8″ x 27 PTF Special Short 65˚ Grease Fitting
231612
Description
Premium Quality Steel. Zinc Plated with Trivalent Passivate to ensure REACH and RoHS Compliance.
Case Hardened Tip with Carbon Steel Ball Check and stress relieved spring for long service life.
For more severe service conditions you may wish to consider our Stainless Steel versions.
AISI 303 (A2 or V2A) Grade Stainless Steel Version also available. Code Number 818267
All Kingfisher Grease Fittings are manufactured exclusively in our factory premises in Leeds, Britain.
All parts are fully traceable back to raw materials and we can provide material certificates on request.
Additional information
| Weight | 11 kg |
|---|---|
| Angle | 65 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.88 |
| Dimension A (mm) | 22.4 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.46 |
| Dimension C (mm) | 11.7 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| International | SAEJ534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
