Product Code: 231636

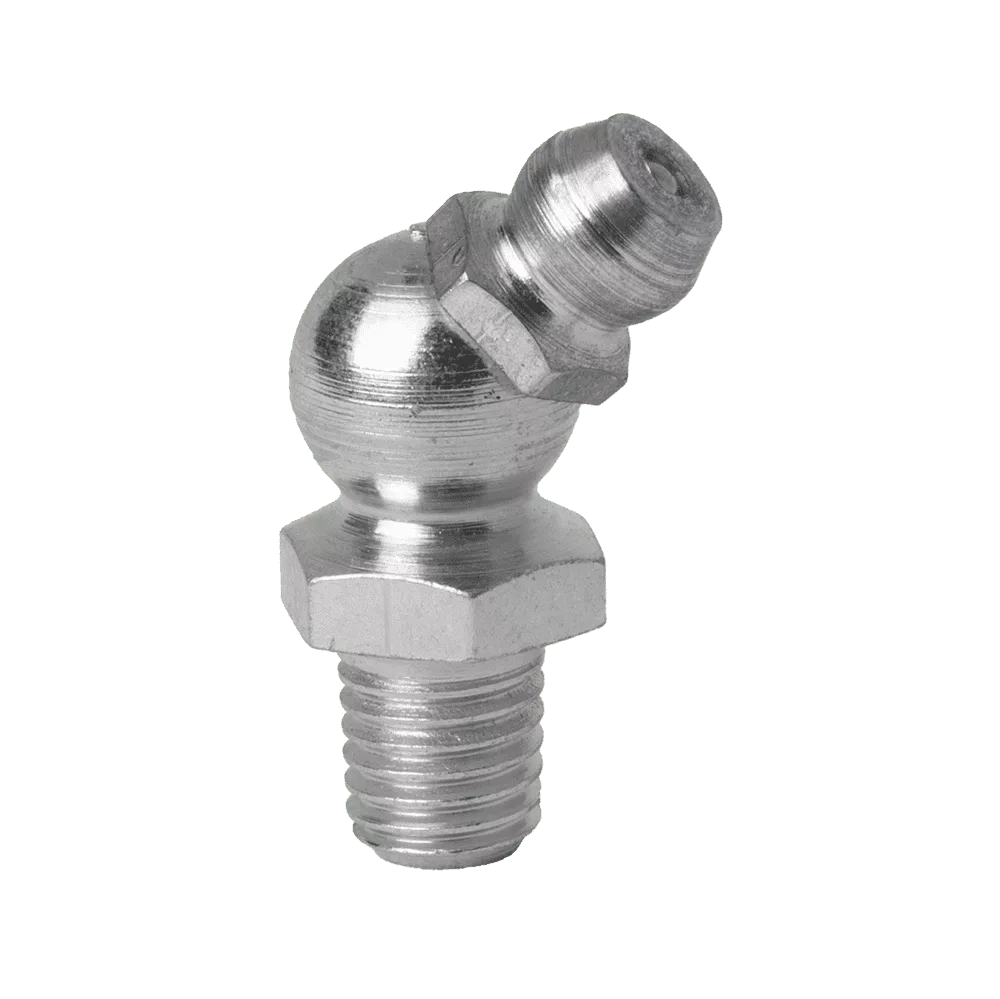

1/4″ x 28 SAE-LT 0.3″ Thread 45˚ Grease Fitting
231636
Description
1/4″ x 28 SAE-LT (UNF) 45° Hydraulic Grease Fitting. Tip is hardened to 83R15N Rockwell. Zinc plated with trivalent passivate to comply with REACH, RoHS and ELV legislation.
Limited availability-Zinc with Yellow Chromate Finish. Code Number 211636
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.97 |
| Dimension A (mm) | 24.6 |
| Dimension B (Inch) | 0.3 |
| Dimension B (mm) | 7.6 |
| Dimension C (Inch) | 0.35 |
| Dimension C (mm) | 8.9 |
| Hardened | Yes |
| Hole | 1/4 UNF |
| International | SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 UNF, 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
