Product Code: 316P1890

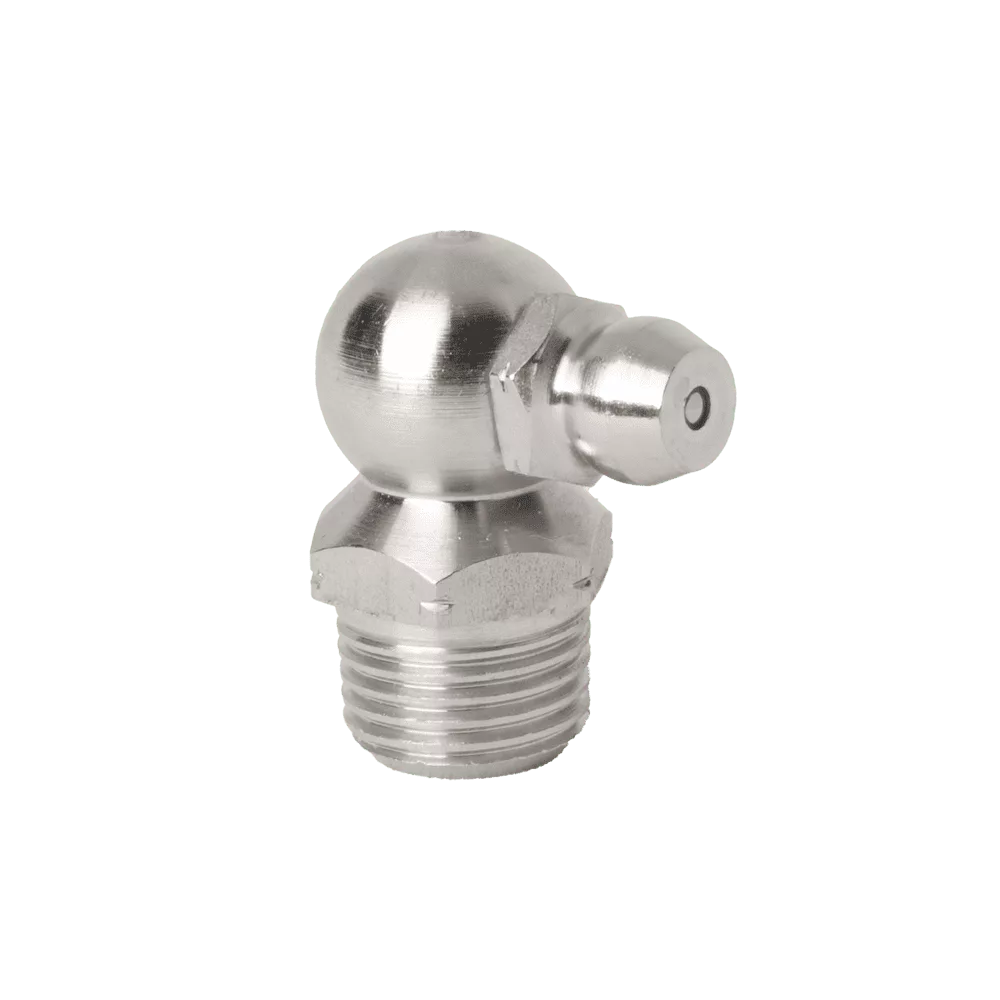

1/8″ x 27 PTF 316 Stainless Steel 90° Grease Fitting
316P1890
Description
1/8″ x 27 PTF Special Short 90° (H3) Hydraulic Grease Fitting.
316 (A4 or V4A) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 818290.
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.83 |
| Dimension A (mm) | 20.8 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | 0.49 |
| Dimension C (mm) | 12.5 |
| Hardened | No |
| Hole | 1/8 American Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | No |
