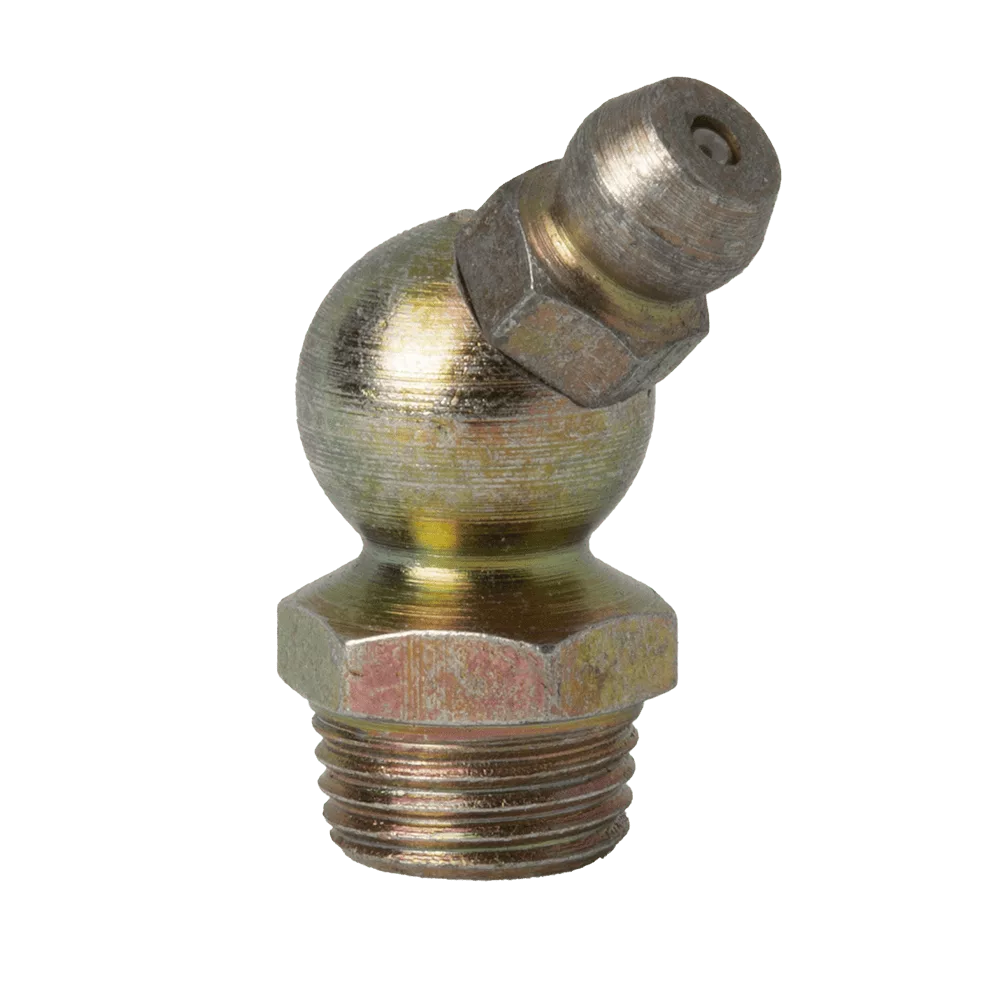

1/8” x 27 Thread Forming 45˚ Grease Fitting
217745
Description
1/8” x 27 Thread Forming 45˚ Grease Fitting. Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/8 x 27 thread is 9.47-9.65mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Also available with Zinc Trivalent Passivate. Code 237745.
Additional information
| Weight | 11 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.95 |
| Dimension A (mm) | 24 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5 |
| Dimension C (Inch) | 0.4 |
| Dimension C (mm) | 10 |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Special | Yes |
| Thread | 1/8 x 27 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
