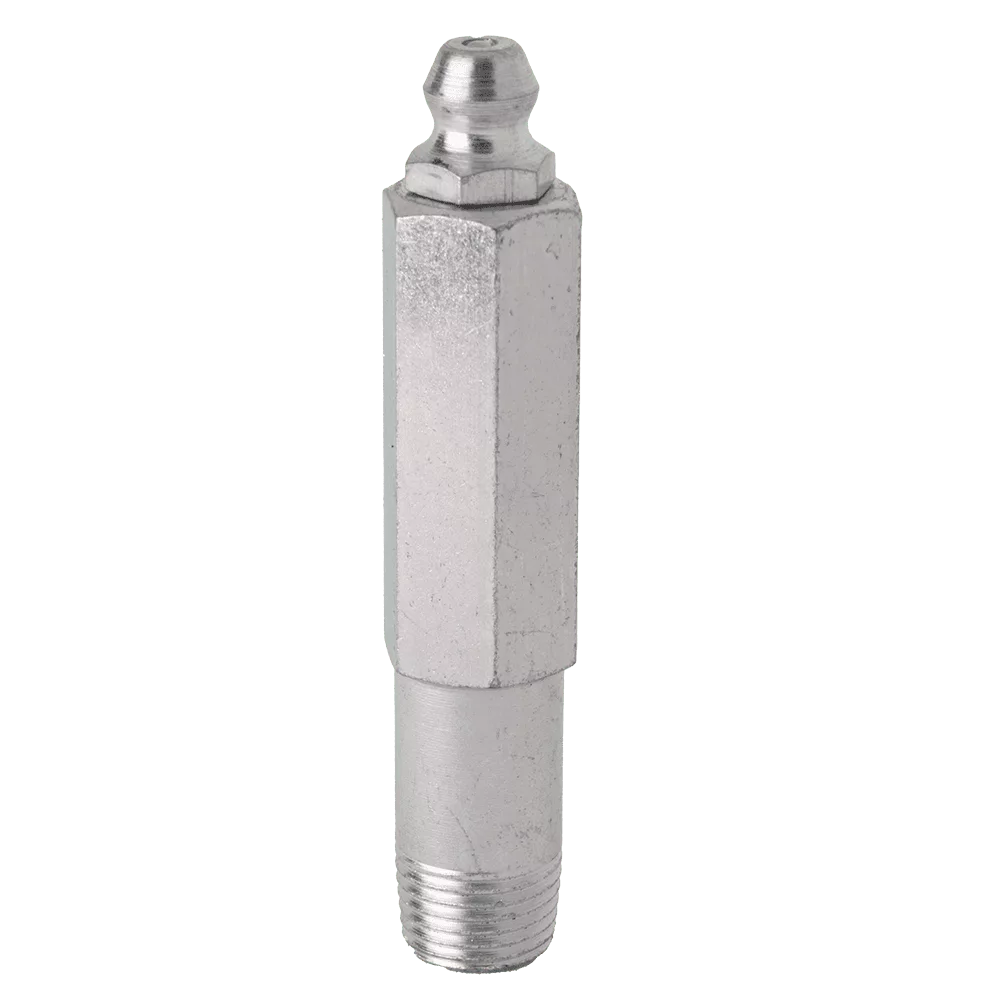

1/8” Pipe Special Taper Thread Forming Straight Grease Fitting
227787
Description
1/8″ x 27 Thread Forming Thread. Long Straight Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/8″ x 27 thread is 9.47-9.65mm (Ref SAE J534) but can be dependent on the material.
Self-forming threads can be screwed or driven into an untapped hole. The size of the hole must be determined by the user.
Avoid chamfering as a sharp edge to the hole helps the thread bite
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 2.28 |
| Dimension A (mm) | 57.9 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Special | Yes |
| Thread | 1/8 x 27 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Trivalent Passivate |
