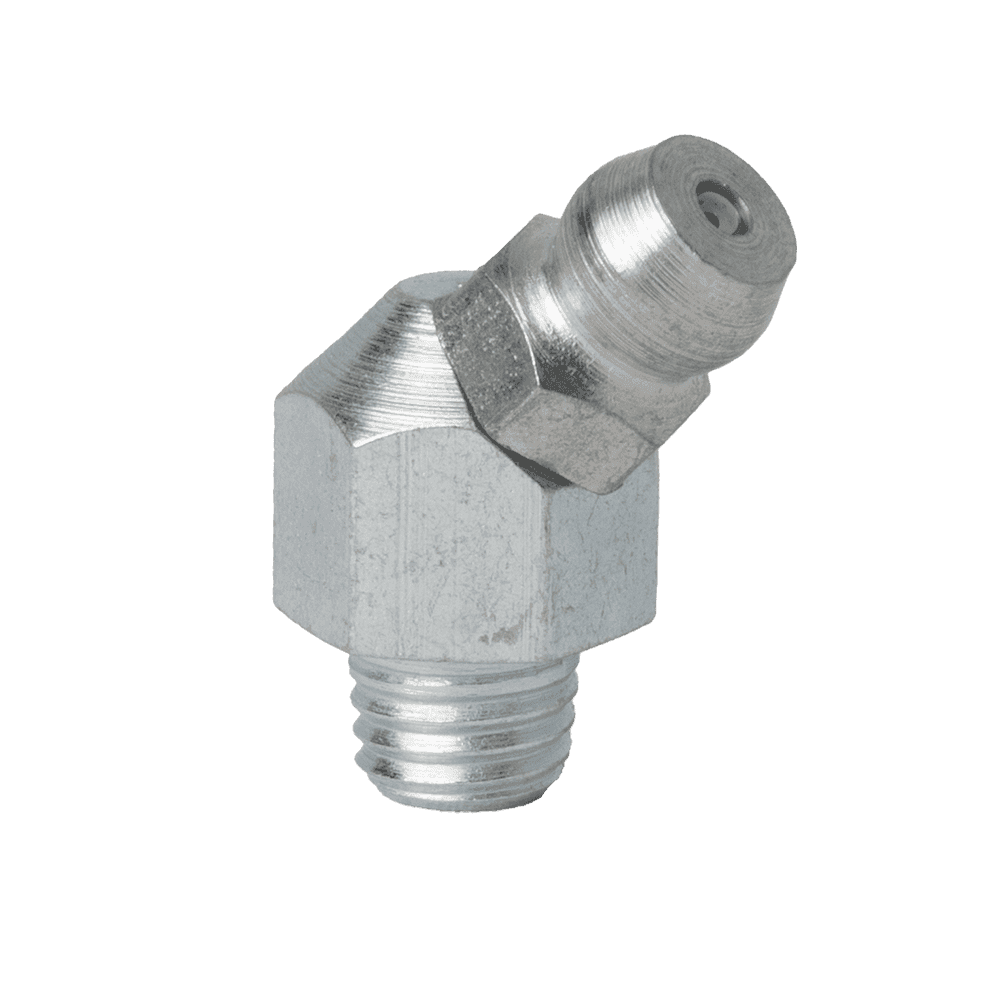

1/4″ x 28 Self Forming 45˚ Hydraulic Grease Fitting
231053
Description
1/4″ x 28 Special Taper Thread Forming Thread. 45° Hydraulic Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/4 x 28 thread is 5.84-5.97mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Also available with Zinc Yellow Chromate Finish. Code Number 211053. Limited Availability.
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |

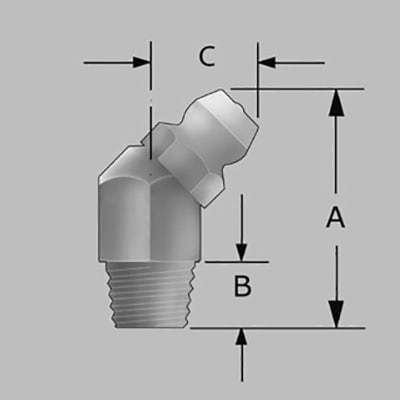

| Dimension A (Inch) | 0.78 |
| Dimension A (mm) | 19.8 |
| Dimension B (Inch) | 0.19 |
| Dimension B (mm) | 4.8 |
| Dimension C (Inch) | 0.38 |
| Dimension C (mm) | 9.9 |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 x 28 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Trivalent Passivate |
