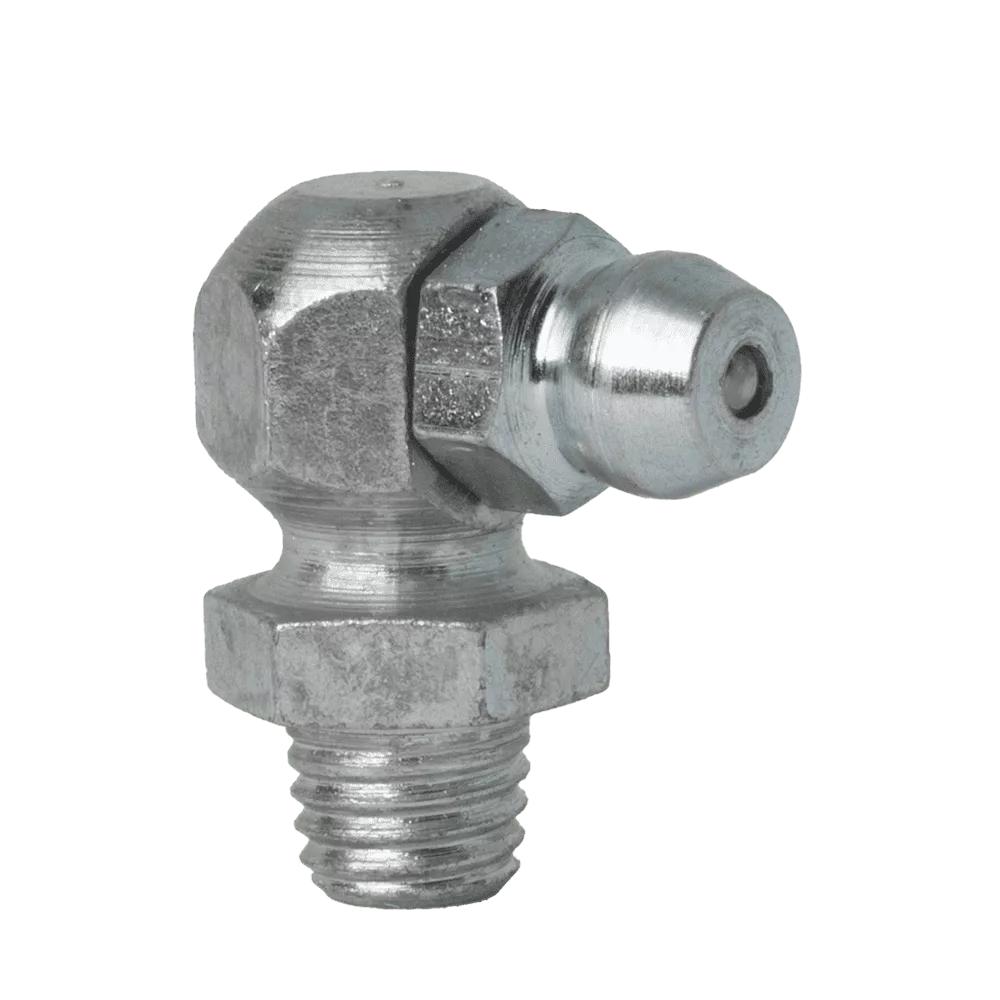

1/4” x 28 Self-Forming 90˚ Grease Fitting
435590
Description
1/4″ x 28 Special Taper Thread Forming Thread. Hydraulic 90° Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/4 x 28 thread is 5.84-5.97mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering the hole, as a sharp edge to the hole helps the thread bite.
Also available with Zinc Yellow Chromate Finish. Code Number 415590. Limited Availability.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.77 |
| Dimension A (mm) | 19.5 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 1/2 ( H = 0.7 max) |
| Dimension C (mm) | 13 (H=17.8 max) |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Product Long | Normal |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 x 28 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Trivalent Passivate |
