Product Code: 221698

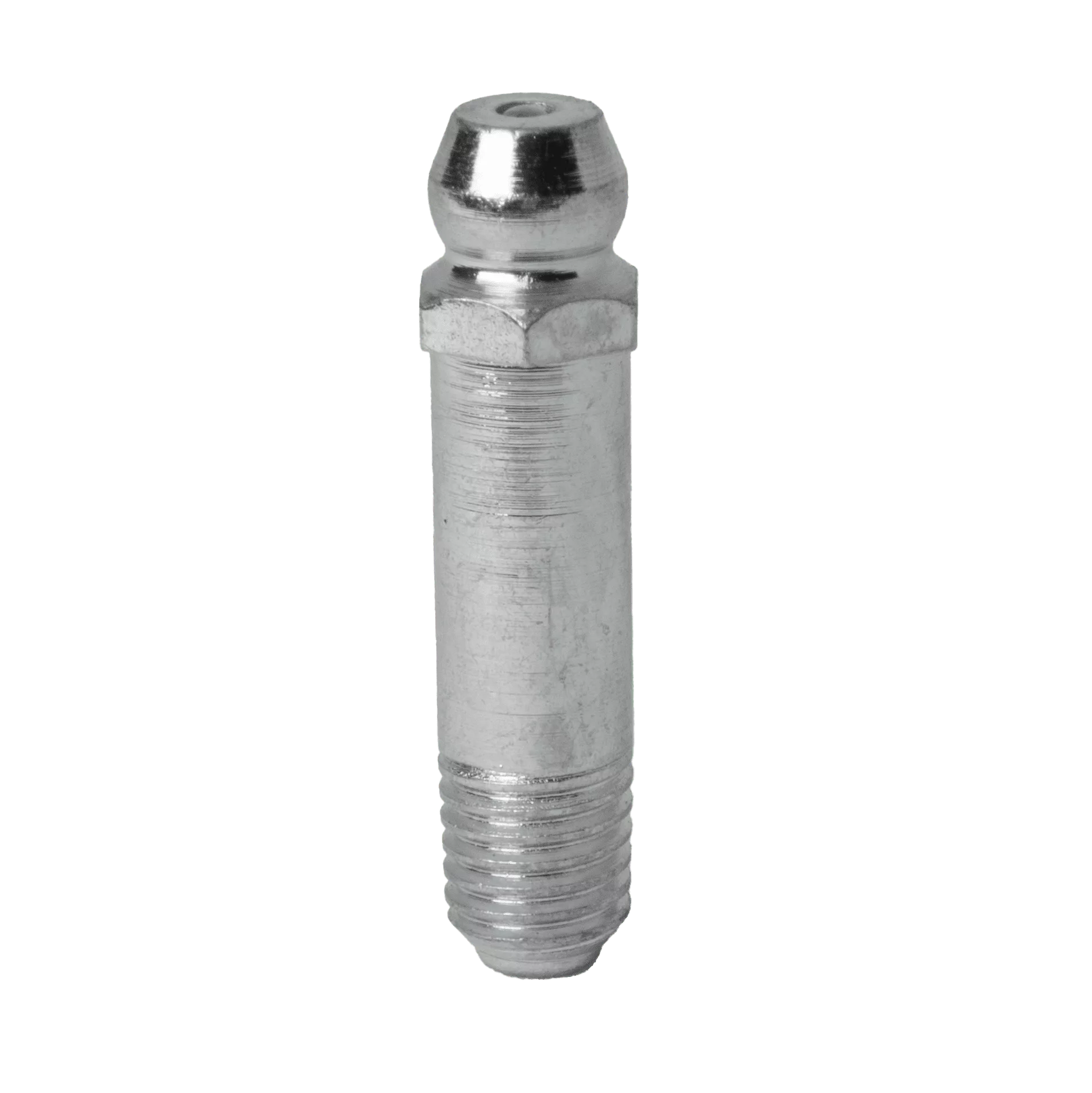

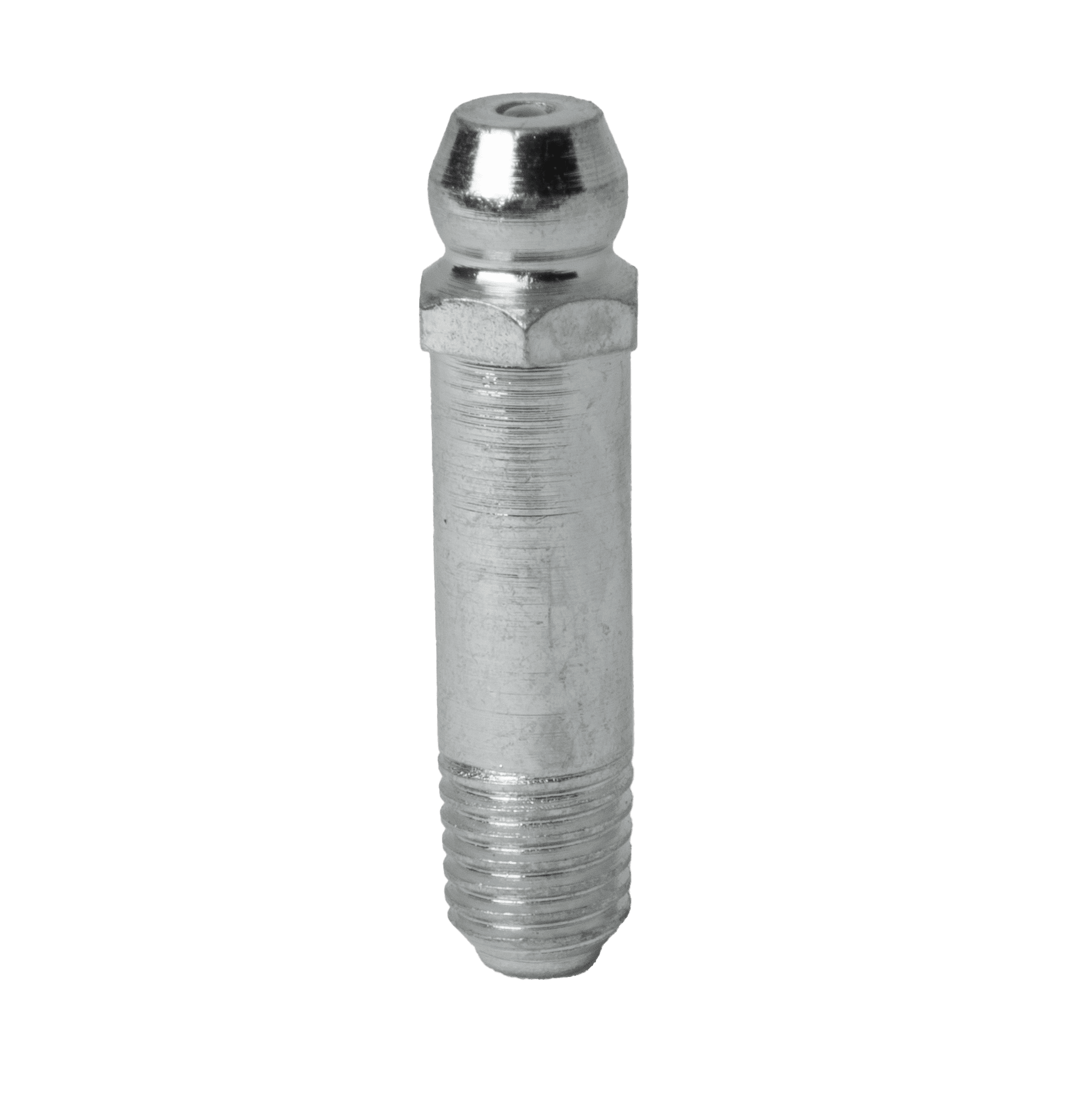

1/4” x 28 SAE-LT Straight Grease Fitting 1.1/8″ Long
221698
Description
1/4″ x 28 SAE-LT (UNF) Hydraulic Straight Grease Fitting. 1.13″ (29mm) Long.
Steel. Zinc Plated with Trivalent Passivate.
Case Hardened Tip – 83R15N
Also available in Yellow Chromate finish with limited availability. Code Number 201698
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 1.13 |
| Dimension A (mm) | 28.7 |
| Dimension B (Inch) | 0.28 |
| Dimension B (mm) | 7.1 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hole | 1/4 UNF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9/32" Hexagon |
| Thread | 1/4 x28 SAE-LT, 1/4 UNF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
