Product Code: 221680

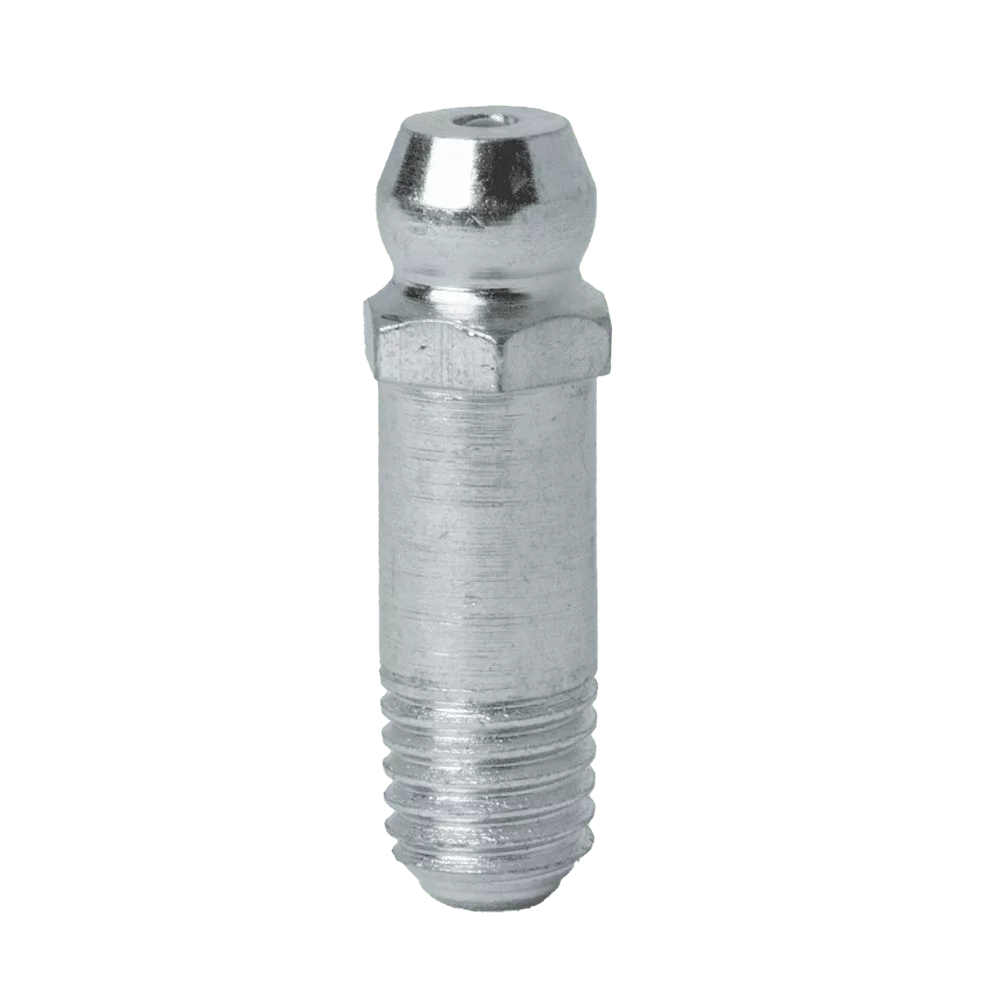

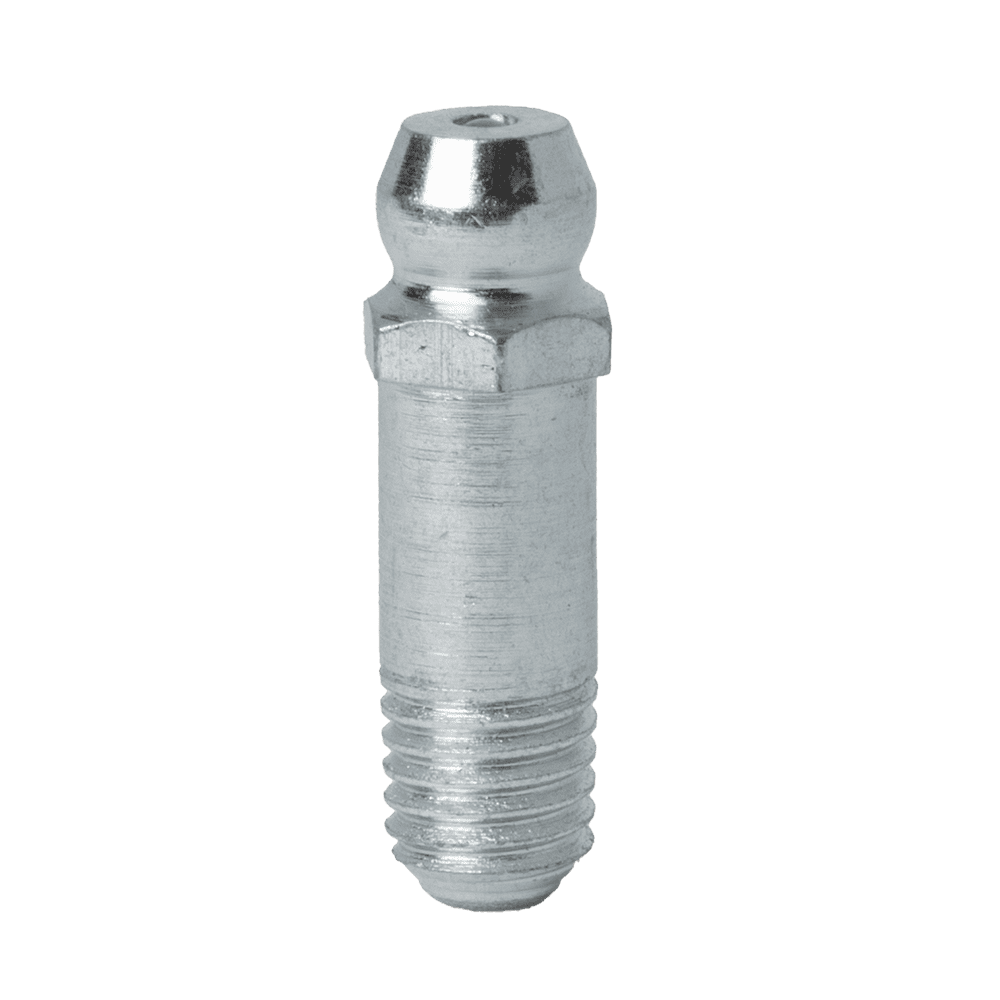

1/4” x 28 SAE-LT Straight Grease Fitting 15/16″ Long
221680
Description
1/4″ x 28 SAE-LT (UNF) 23mm Long. Hydraulic Straight Grease Fitting.
Steel. Zinc Plated with Trivalent Passivate.
Also available in 303 Stainless Steel.
Yellow Chromate finish with limited availability. Code Number 201680
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

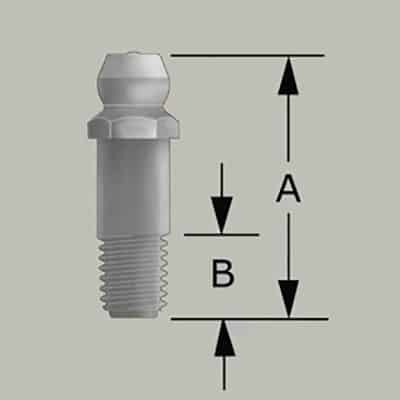

| Dimension A (Inch) | 0.93 |
| Dimension A (mm) | 23.6 |
| Dimension B (Inch) | 0.62 |
| Dimension B (mm) | 15.7 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hole | 1/4 UNF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Product Long | Long |
| Spanner Wrench Size | 9/32" Hexagon |
| Thread | 1/4 x28 SAE-LT, 1/4 UNF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
