Product Code: 812545

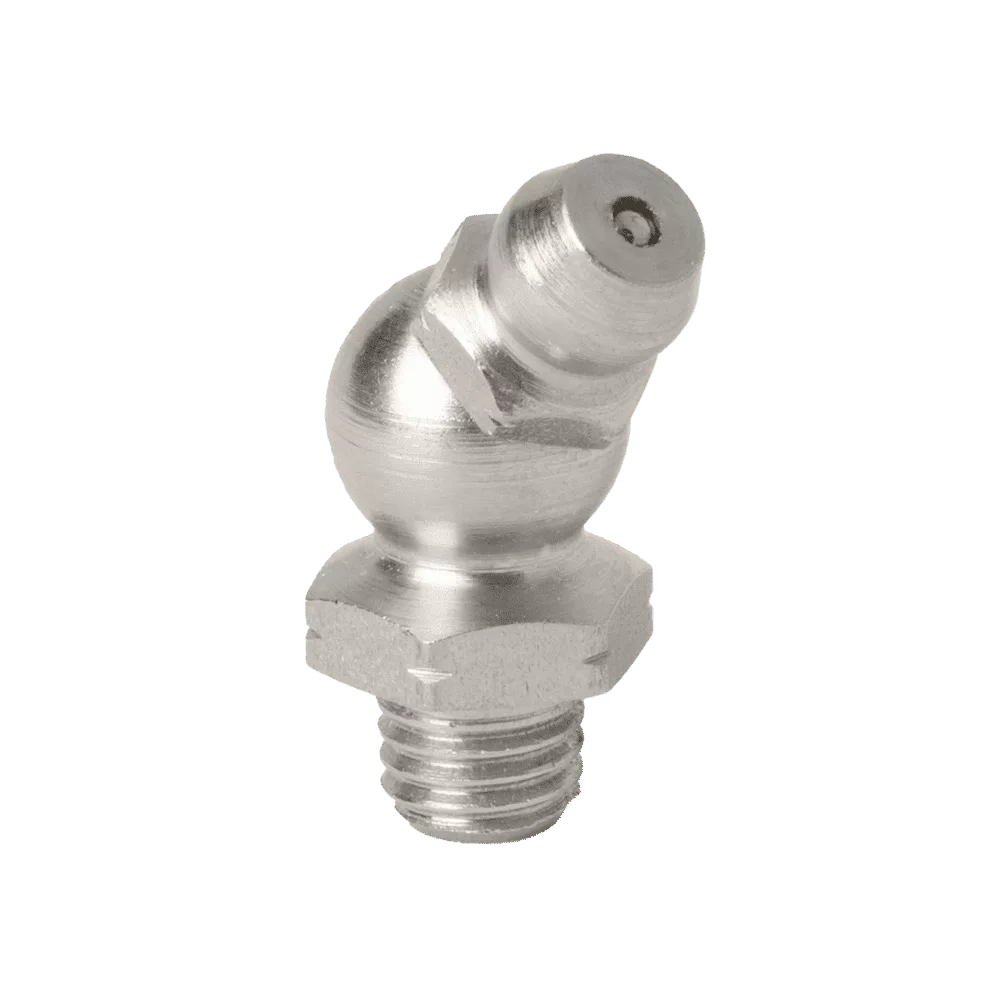

1/4″ x 28 SAE-LT 45˚ Grease Fitting 303 Stainless Steel
812545
Description
1/4″ x 28 SAE-LT (UNF) Hydraulic 45˚ Grease Fitting.
To be installed into 1/4″ x 28 UNF tapped hole.
Body manufactured from 303 (A2 or V2A) grade Stainless Steel.
302 Grade Stainless Steel (Stress Relieved) Spring.
440C Grade Stainless Steel ball.
Dimensions & Attributes
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.88 |
| Dimension A (mm) | 22.4 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.1 |
| Dimension C (Inch) | 0.37 |
| Dimension C (mm) | 9.4 |
| Hardened | No |
| Hole | 1/4 UNF |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 UNF, 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
