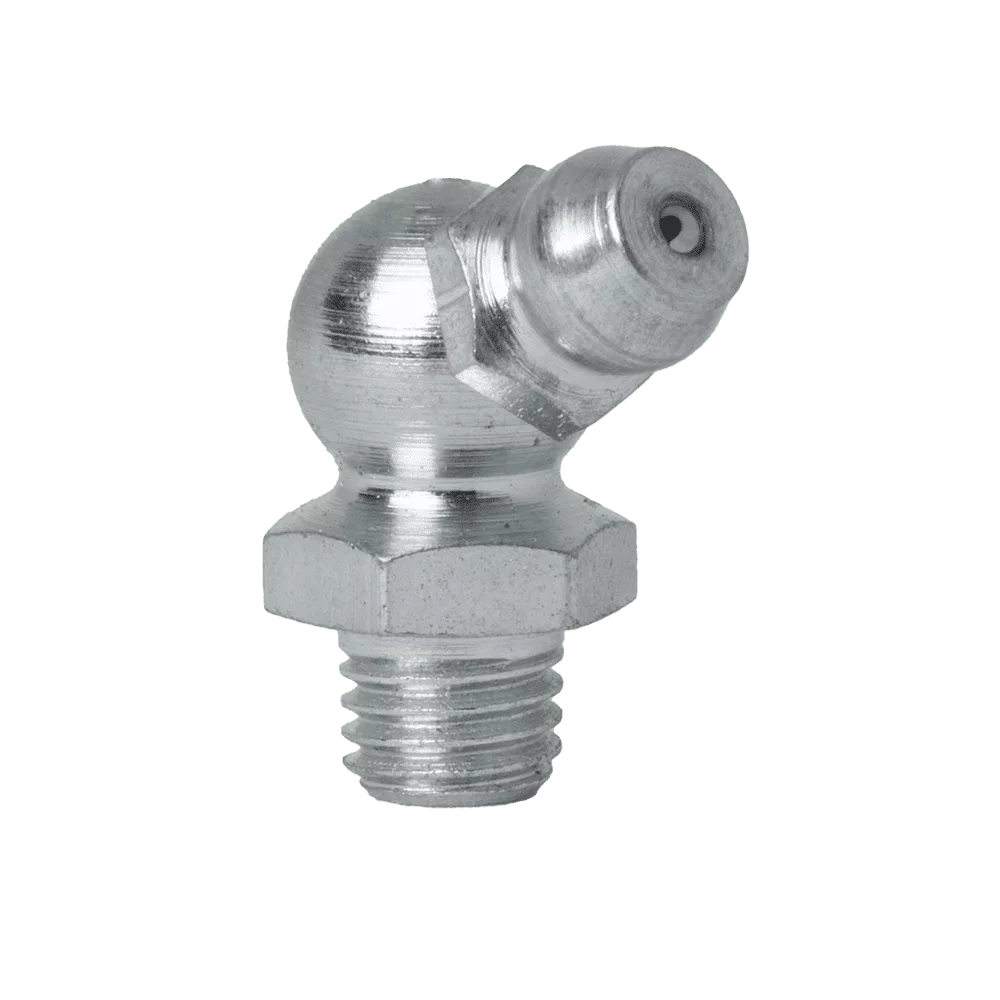

1/4” x 28 SAE-LT 65˚ Hydraulic Grease Fitting
231665
Description
231665 is the standard 1/4″ x 28 SAE-LT (UNF) 65 degree fitting. Commonly used in automotive applications. Tip is hardened to 83R15N Rockwell. Zinc plated with trivalent passivate to comply with REACH, RoHS and ELV legislation.
Also available with limited availability-Zinc with Yellow Chromate Finish. Code Number 211665
Additional information
| Weight | 14 kg |
|---|---|
| Angle | 65 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.76 |
| Dimension A (mm) | 19.3 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.1 |
| Dimension C (Inch) | 0.41 |
| Dimension C (mm) | 10.4 |
| Hardened | Yes |
| Hole | 1/4 UNF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 UNF, 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
