Product Code: 31341665
1/4″ x 26 BSF 65° Push Type Grease Fitting
31341665
Description
1/4″ x 26 BSF 65° Push Type Grease Fitting.
Case Hardened and Zinc Plated with Trivalent Passivate Finish.
Ball Check to prevent the ingress of dirt.
Stress Relieved Spring for prolonged service life.
Additional information
| Angle | 65 |
|---|---|
| Ball Check | Yes |

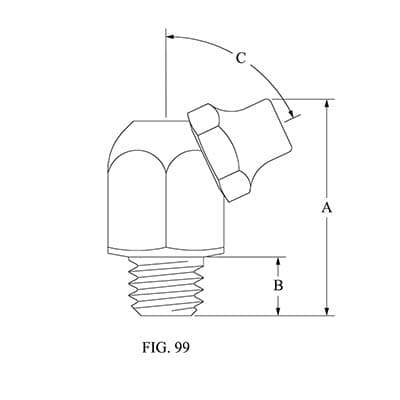

| Dimension A (Inch) | 0.69 |
| Dimension A (mm) | 17.4 |
| Dimension B (Inch) | 0.19 |
| Dimension B (mm) | 4.8 |
| Dimension C (Inch) | 13/32 |
| Dimension C (mm) | 10.3 |
| Hardened | No |
| Hole | 1/4 BSF |
| Product Type | Push Type |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 x 26 BSF |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
