Product Code: 231744

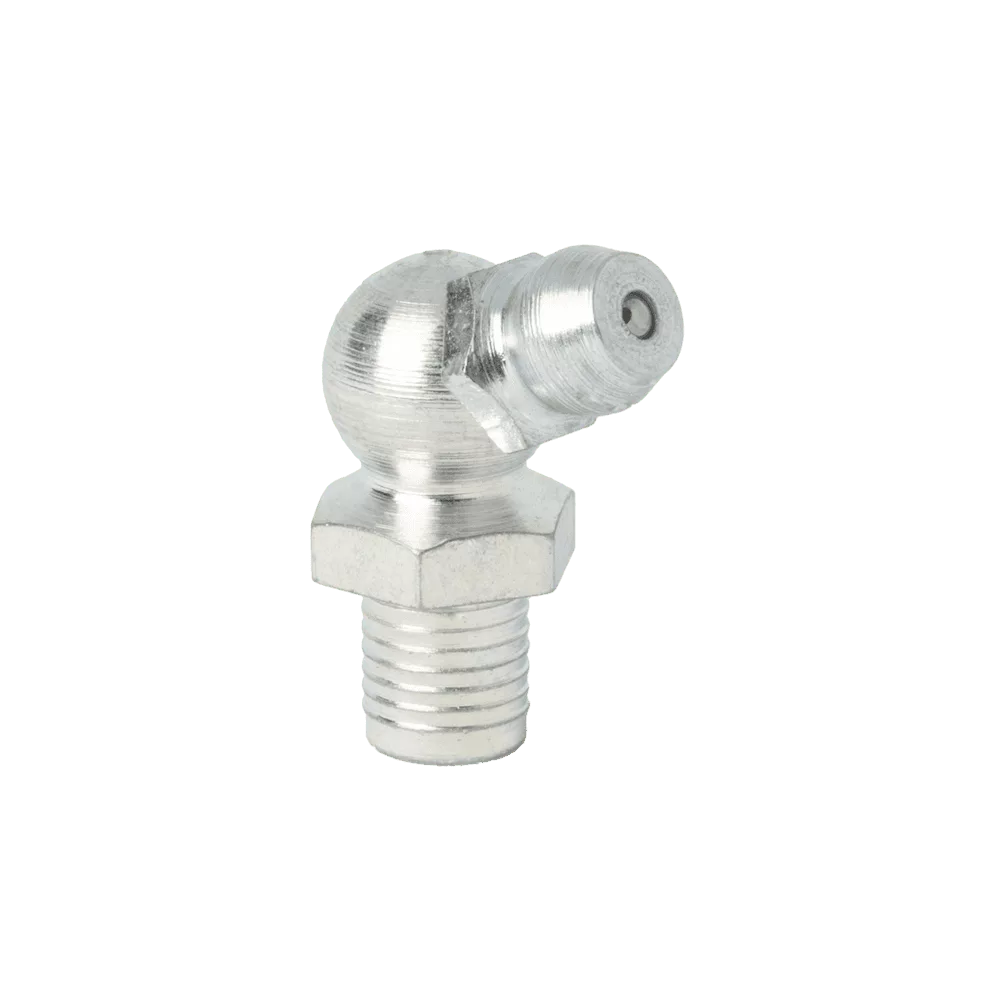

1/4” Drive Fit 65˚ Grease Fitting
231744
Description
1/4″ Drive Fit 65° Hydraulic Grease Fitting.
Zinc Trivalent Passivate Finish.
For use in a 1/4″ Diameter Hole.
Also available with Zinc Yellow Chromate Finish. Code Number 211744.
Additional information
| Weight | 15 kg |
|---|---|
| Angle | 65 |
| Ball Check | Yes |

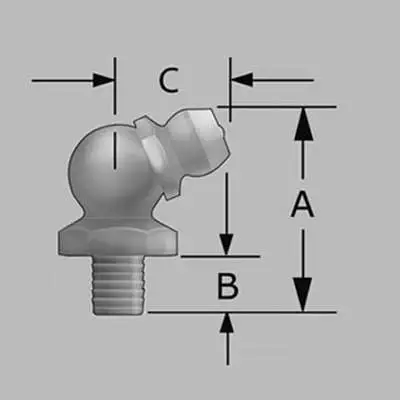

| Dimension A (Inch) | 0.85 |
| Dimension A (mm) | 21.6 |
| Dimension B (Inch) | 0.28 |
| Dimension B (mm) | 7.1 |
| Dimension C (Inch) | 0.42 |
| Dimension C (mm) | 10.7 |
| Hardened | Yes |
| Hole | 1/4 nominal |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Trivalent Passivate |
