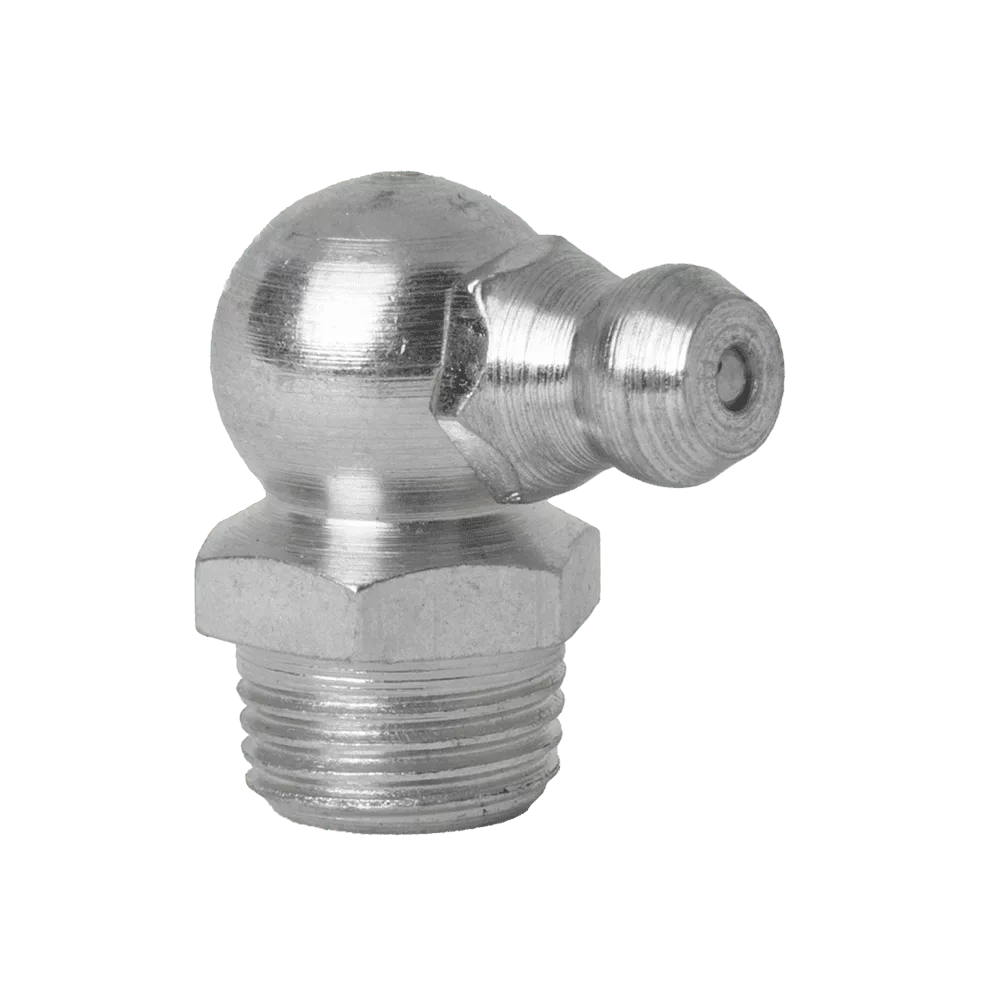

1/8″ x 28 BSPT (R1/8″) 90° Grease Fitting
616991
Description
1/8″ x 28 BSPT (R1/8″) 90° Grease Fitting.
Premium Quality Steel. Case Hardened Tip. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Material Certificates are available on request.
Made exclusively in Britain. Worldwide Shipping.
Available in 303 Stainless Steel 811490 and 316 Stainless Steel 316R1890

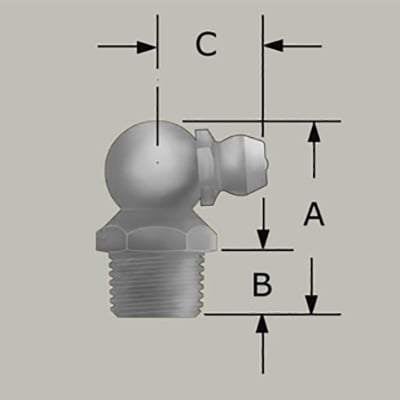

Dimensions & Attributes
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.75 |
| Dimension A (mm) | 19 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.5 |
| Dimension C (Inch) | 0.49 |
| Dimension C (mm) | 12.5 |
| Hardened | Yes |
| Hole | 1/8 British Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | R1/8 x 28 BSPT |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
