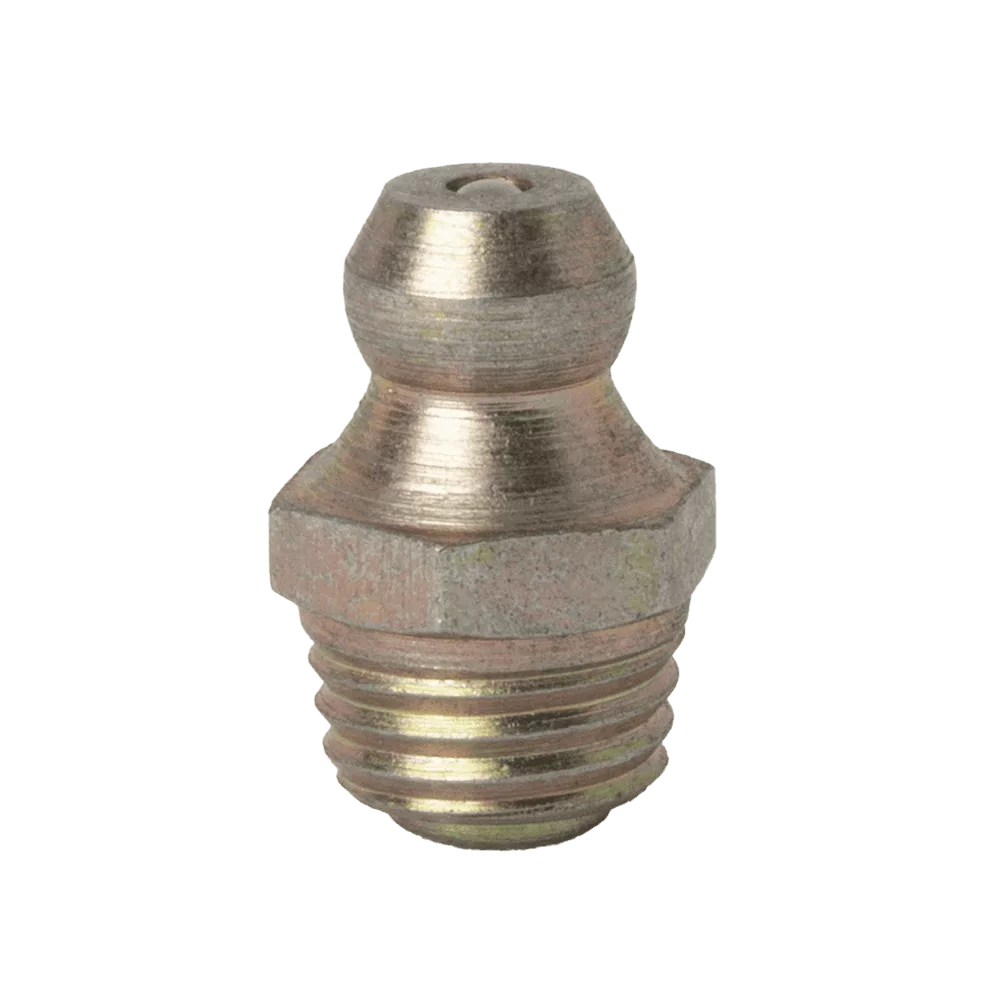

M8 x 1 Taper Thread Forming Straight Grease Fitting
608971
Description
M8 x 1 Self Forming Thread Straight Grease Fitting.
Hardened Steel. Zinc Plated with Yellow Chromate Finish.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a M8 x 1 thread is 7.4-7.6mm (Ref DIN 71412) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Additional information
| Weight | 11 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.57 |
| Dimension A (mm) | 14.5 |
| Dimension B (Inch) | 0.21 |
| Dimension B (mm) | 5.3 |
| Hardened | Yes |
| Hole | ref. DIN 71412 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M8 x 1 Self Forming |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
