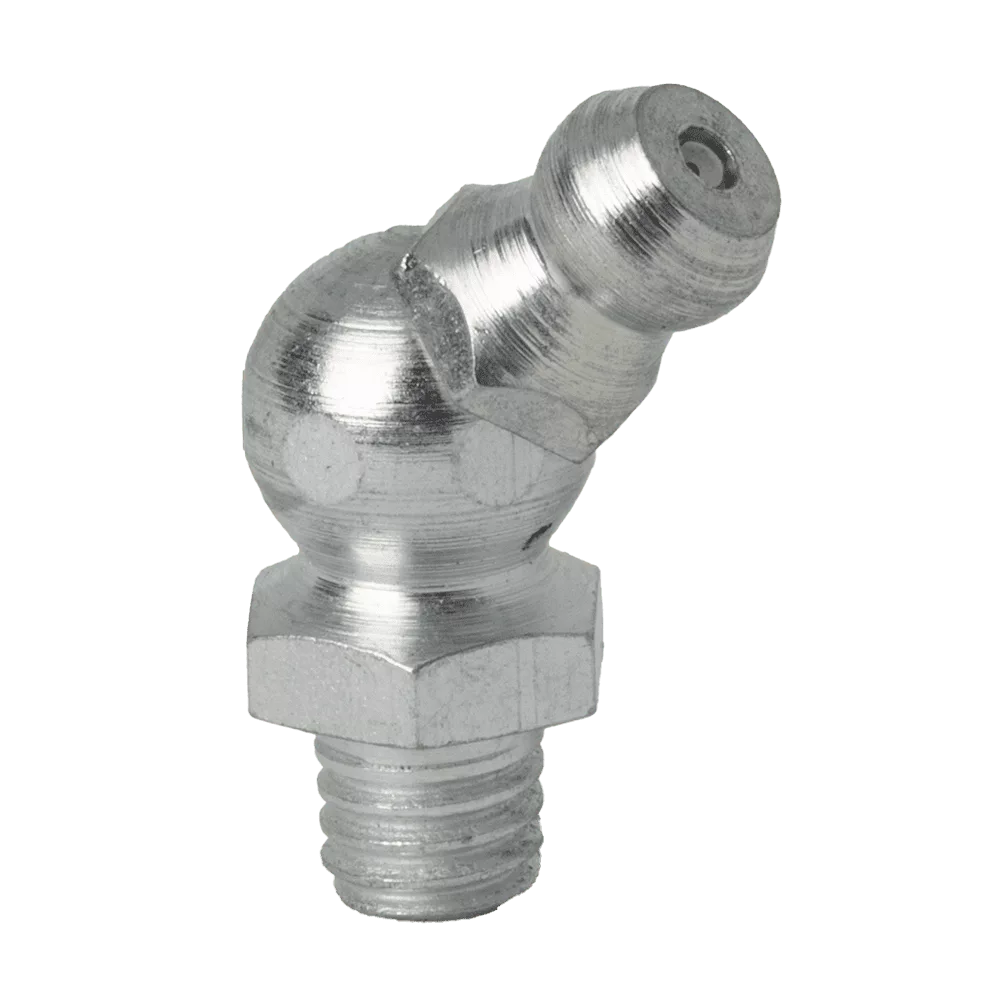

M6 x 1 Taper 45˚ Grease Fitting
617046
Description
M6 x 1 Taper 45° Angle Grease Fitting. According to DIN 71412 Form B (H2)
Premium Quality Steel. Zinc Plated with Trivalent Passivate. RoHS and REACH Compliant.
Stress Relieved Spring for long service life.
Carbon Steel Ball Check.
Also Available with Zinc Yellow Chromate Finish. Code Number 617045. Limited Availability.
Available in 303 Stainless Steel. Code Number 813645 and 316 Stainless Steel. Code Number 316M6145
Additional information
| Angle | 45 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.9 |
| Dimension A (mm) | 23 |
| Dimension B (Inch) | 0.22 |
| Dimension B (mm) | 5.6 |
| Dimension C (Inch) | 0.39 |
| Dimension C (mm) | 9.9 |
| Hardened | Yes |
| Hole | M6 x 1 |
| International | DIN 71412 |
| Material | Mild Steel |
| Spanner Wrench Size | 9mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
