Product Code: 3168611

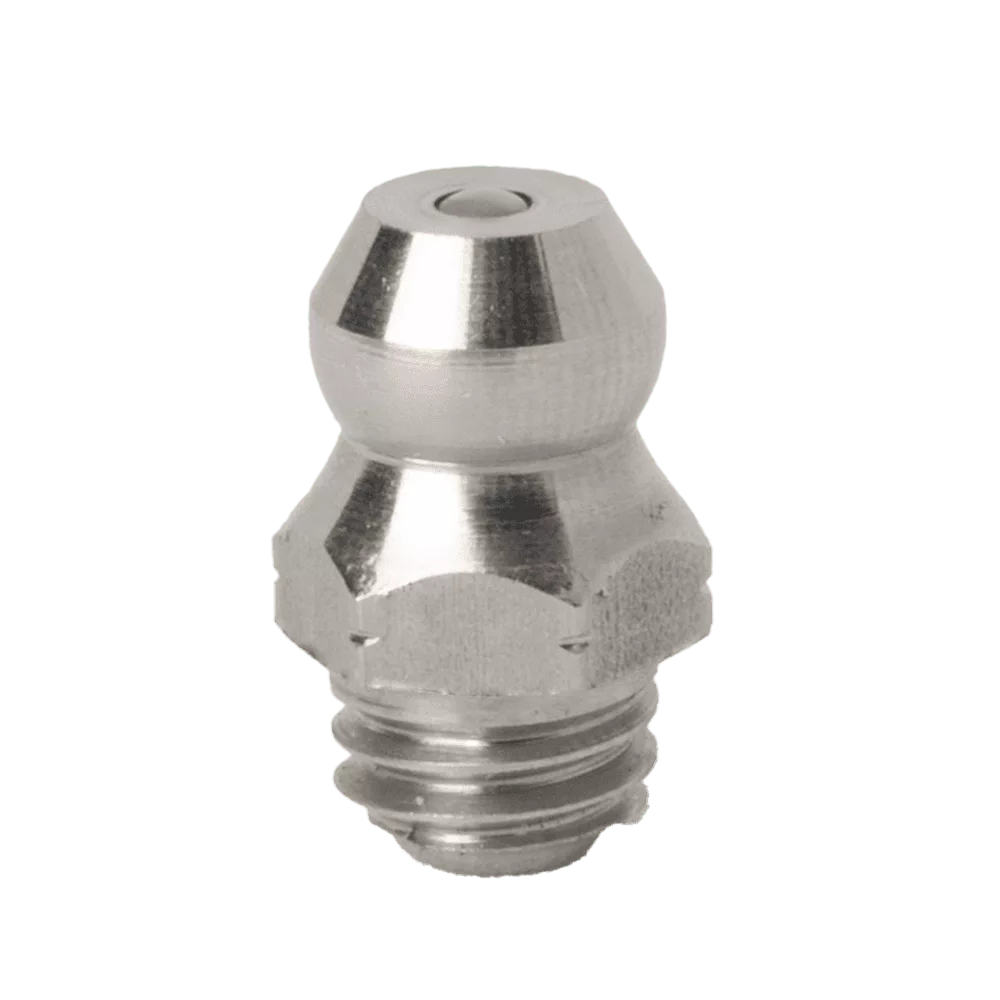

M6 x 1 Taper Short Straight Grease Fitting 316 Stainless Steel (A4)
3168611
Description
M6 x 1 Taper, Short Thread, Hydraulic Straight Grease Fitting. Form A according to DIN 71412. (H1)
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 808611
.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (mm) | 12.3 |
| Dimension B (mm) | 4 |
| Hardened | No |
| Hole | M6 x 1 |
| International | DIN71412 head form |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
