Product Code: 906161

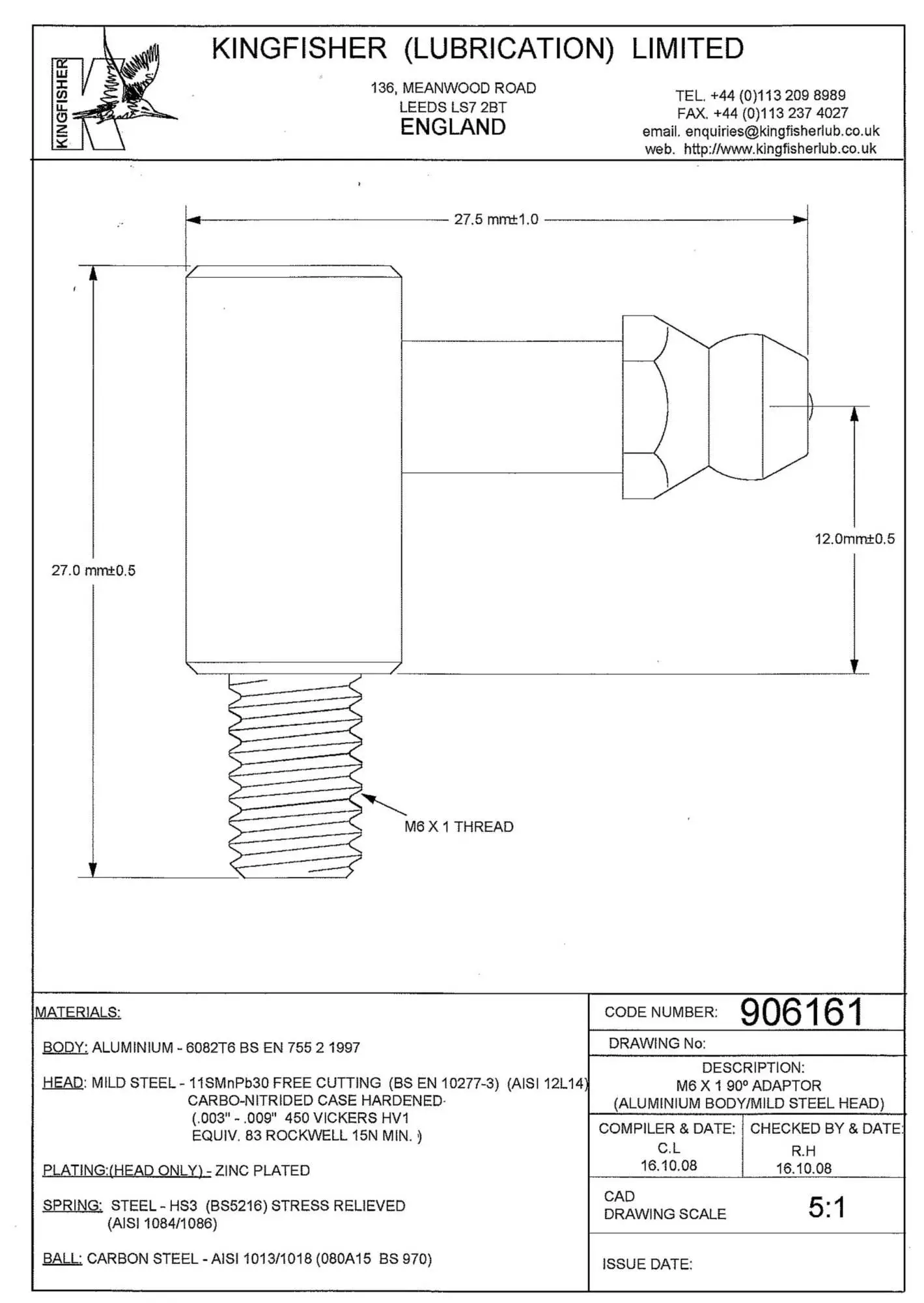

M6 x 1 Aluminium Adaptor with 90˚, long reach hardened zinc plated hydraulic nipple
906161
Description
This is a lightweight, long reach fitting used in linear slides and other applications where both reach and weight are critical. Having an aluminium body and a hardened steel hydraulic head.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |

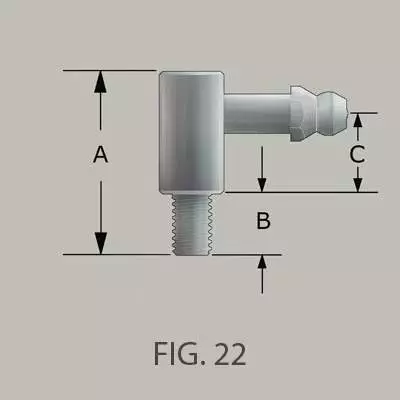

| Diagram | Fig.22 |
| Dimension A (Inch) | 1.06 |
| Dimension A (mm) | 27 |
| Dimension B (Inch) | 0.35 |
| Dimension B (mm) | 9 |
| Dimension C (Inch) | 1.08 |
| Dimension C (mm) | 27.5 |
| Hardened | Yes |
| Hidden | No |
| Hole | M6 x 1 |
| Product Type | Hydraulic Grease Nipple |
| Material | Aluminium |
| Product Long | Long |
| Special | Yes |
| Stock Item | Class 4 Parts |
| Thread | M6 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | Yes |
