Product Code: 31622M16

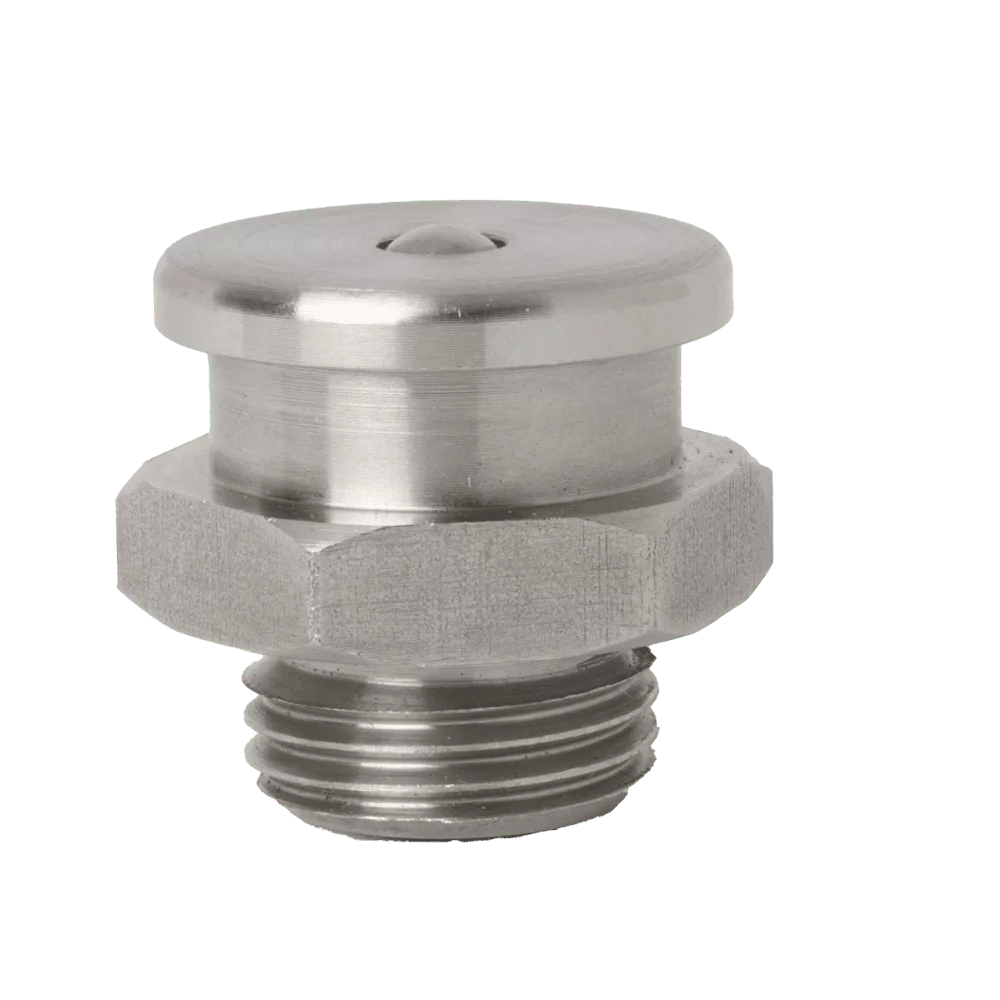

M16 x 1.5 22mm DIN3404 Button Head 316 Stainless Steel
31622M16
Description
M16 x 1.5 Button Head Grease Fitting According to DIN 3404 Requires the large 22mm diameter coupler
316 Grade Stainless Steel (A4 or V4A) Body Ball and Spring.
Material Certification Available.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (mm) | 23.1 MAX |
| Dimension B (mm) | 9 MAX |
| Hardened | No |
| Hole | M16 x 1.5 |
| International | DIN 3404 |
| Product Type | Button Head Grease Fitting |
| Material | 316 Stainless |
| Spanner Wrench Size | 22mm Hexagon |
| Thread | M16 x 1.5 |
| Thread Type | Metric |
| Zinc Plating | No |
