Product Code: 804301

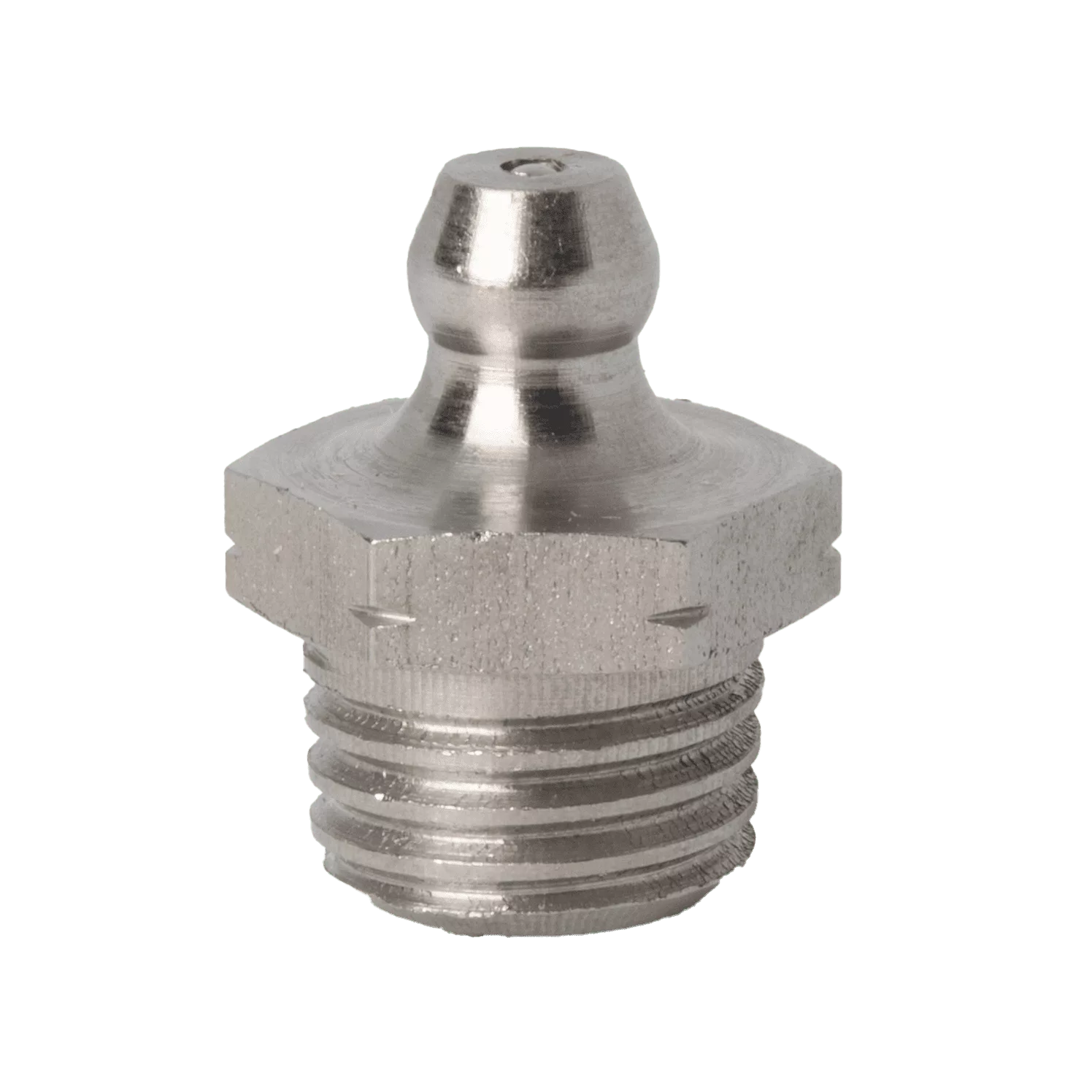

M12 x 1.5 Taper Straight Grease Fitting 303 Stainless Steel
804301
Description
M12 x 1.5 Taper Hydraulic Straight Grease Fitting. DIN 71412 Form A (H1)
303 Grade Stainless Steel Body (A2) with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Weight | 12 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.79 |
| Dimension A (mm) | 20 |
| Dimension B (Inch) | 0.33 |
| Dimension B (mm) | 8.4 |
| Hardened | No |
| Hole | M12 x 1.5 |
| International | DIN71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 14mm Hexagon |
| Thread | M12 x 1.5 |
| Thread Type | Metric |
| Zinc Plating | No |
