Product Code: 328601

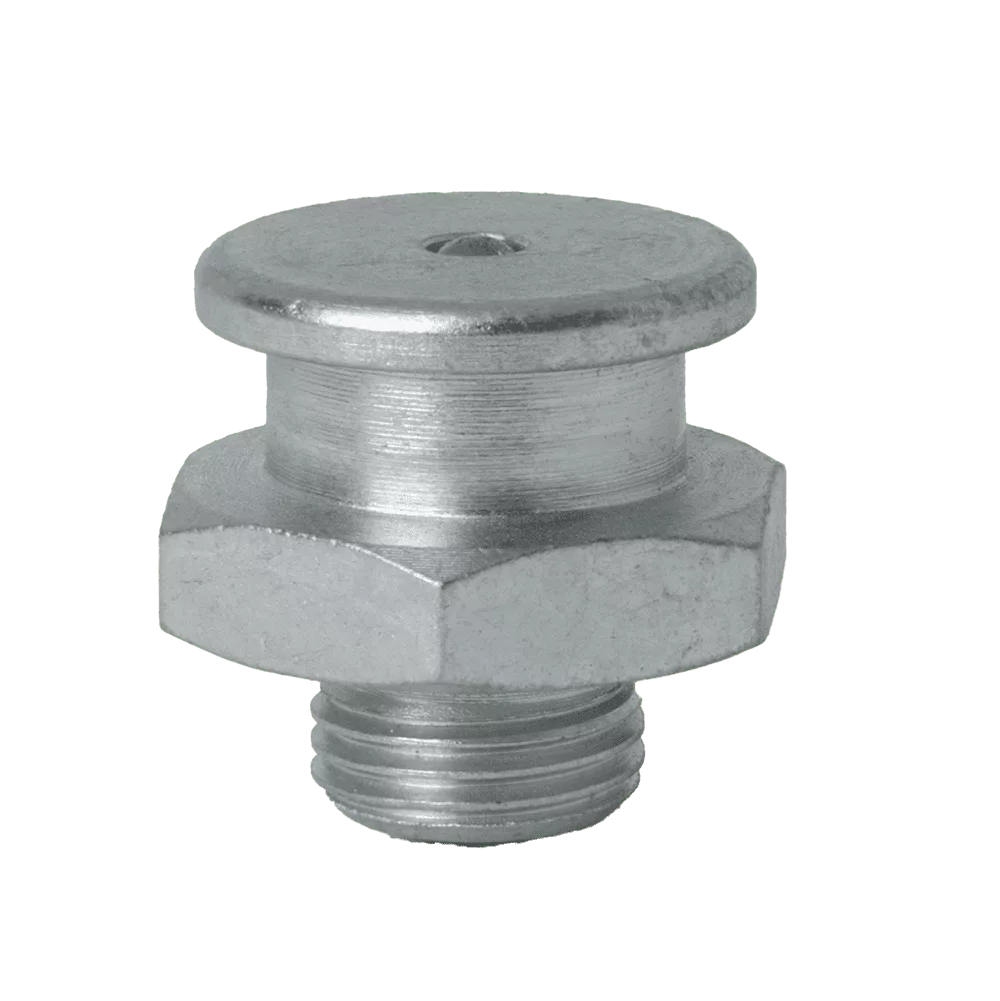

M10 x 1 16mm DIN3404 Button Head
328601
Description
M10 x 1 Parallel Thread Button Head Grease Fitting to DIN 3404. 16mm Diameter Button Head. Commonly Referred to as M1 Style.
Steel. Zinc Plated Trivalent Passivate. RoHS and REACH Compliant.
Available in 303 Grade Stainless Steel. Code Number 828601
Additional information
| Weight | 9 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.66 |
| Dimension A (mm) | 16.9 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 6 |
| Hardened | No |
| Hole | M10 x 1 |
| International | DIN 3404 |
| Product Type | Button Head Grease Fitting |
| Material | Mild Steel |
| Spanner Wrench Size | 17mm Hexagon |
| Thread | M10 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | Zinc Trivalent Passivate |
| Alternative Code | 4101709 |
