Product Code: 316M105

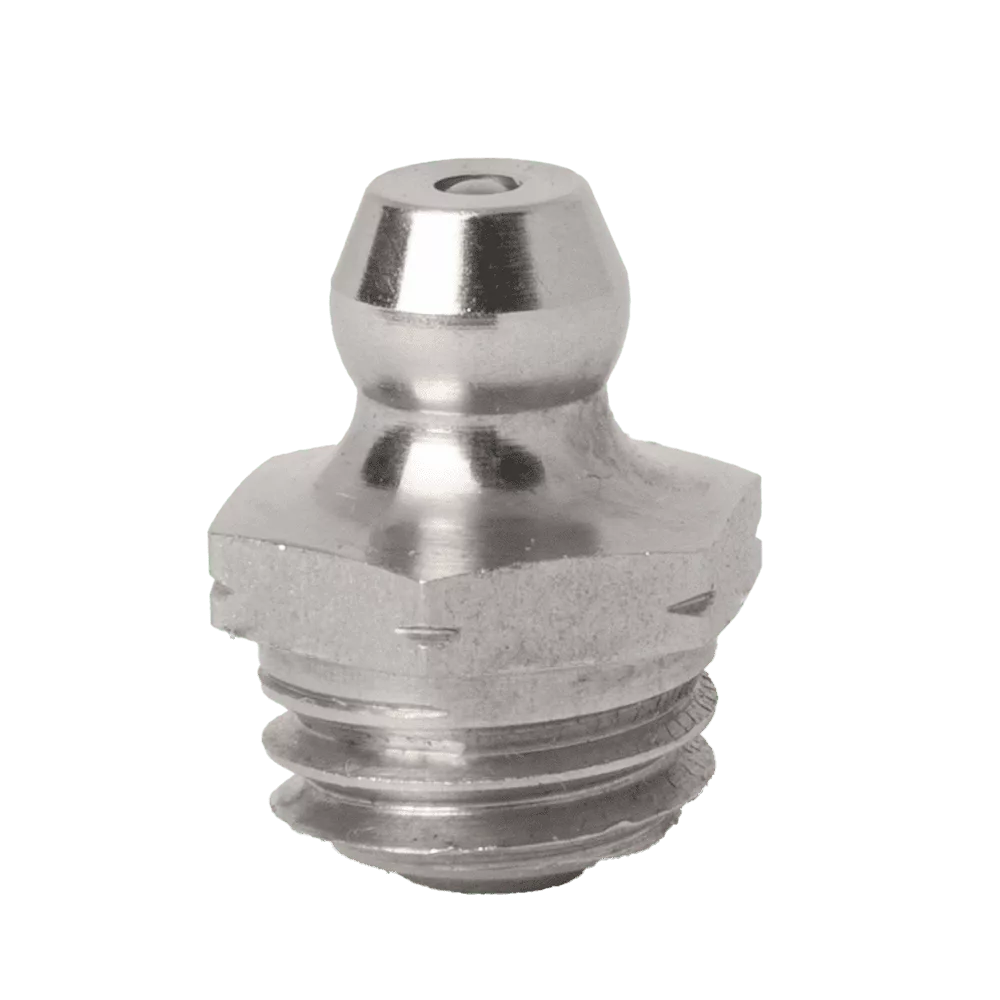

M10 x 1.5 Taper Straight Grease Fitting 316 Stainless Steel (A4)
316M105
Description
M10 x 1.5 Taper Hydraulic Straight Grease Fitting. Form A according to DIN 71412. (H1)
316 (A4) Stainless Steel Body, Ball and Stress Relieved Spring.
Material Certification Available.
303 Stainless Steel Version also available. Code Number 808073.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.6 |
| Dimension A (mm) | 15.2 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.8 |
| Hardened | No |
| Hole | M10 x 1.5 |
| Product Type | Hydraulic Grease Nipple |
| Material | 316 Stainless |
| Thread | M10 x 1.5 Taper |
| Thread Type | Metric |
| Zinc Plating | No |
