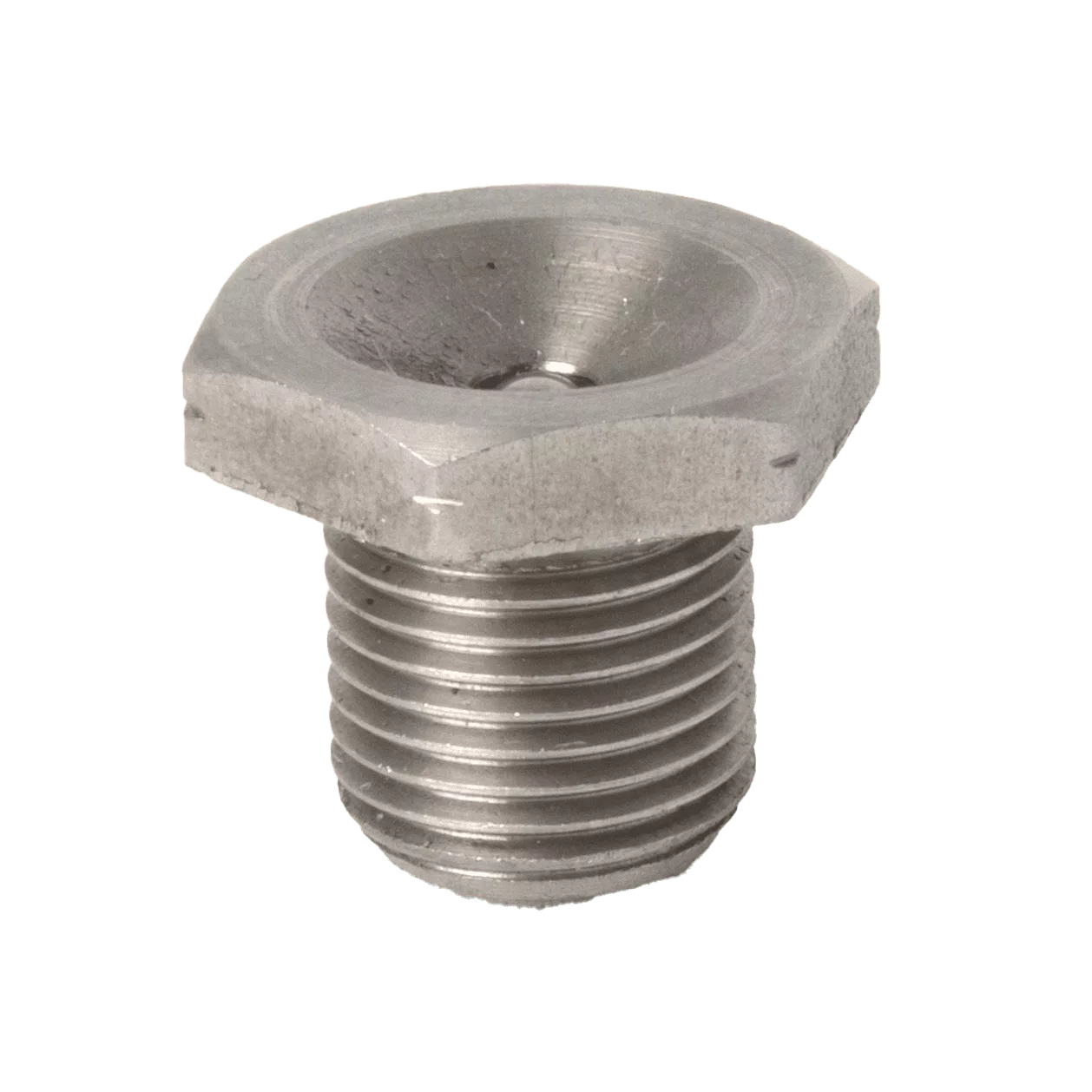

Product Code: 8161418
1/8″ x 28 BSP G1/8 10mm Long Shank Cup Type 303 Stainless Steel
8161418
CUP TYPES are used where flush fit is essential and also when high pressure must be avoided
Trichterschmiernippel DIN 3405
This particular part was manufactured for a specific application and some stock remains. It has a large hexagon to retain a sealing washer and a long shank as it also was used as a fastener.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (mm) | 13.5 |
| Dimension B (mm) | 10.5 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| Product Type | Cup Type |
| Material | 303 Stainless |
| Spanner Wrench Size | 14mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | No |
