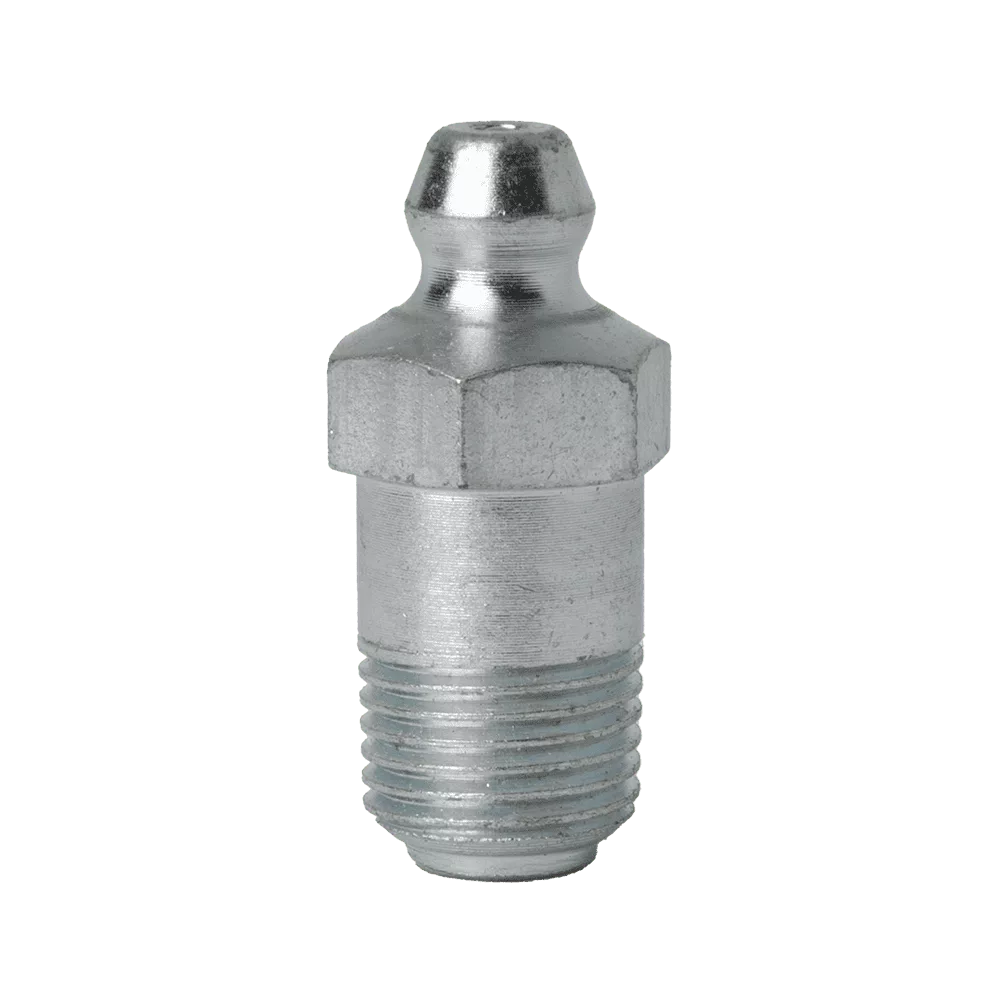

1/8″ x 27 PTF Leakproof Straight Double Ball Grease Fitting
221634
Description
This double ball grease fitting’s first ball is held in place by a medium spring which acts as a surface to check to prevent the ingress of dirt and debris.
A second internal ball and spring to act as a seal against a precision machined brass seat.
This fitting will prevent leakage from both high and low-pressure medium oils and greases
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

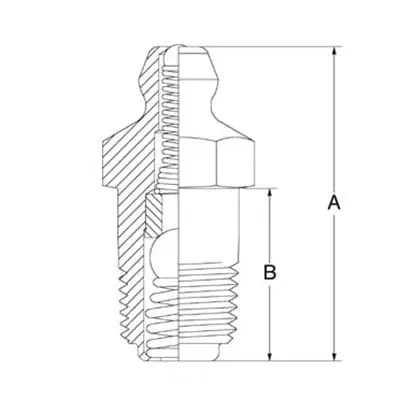

| Dimension A (Inch) | 1 |
| Dimension A (mm) | 26 |
| Dimension B (Inch) | 0.55 |
| Dimension B (mm) | 14 |
| Hardened | Yes |
| Hole | 1/8 American Pipe |
| Product Type | High Pressure/Leakproof |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Trivalent Passivate |
