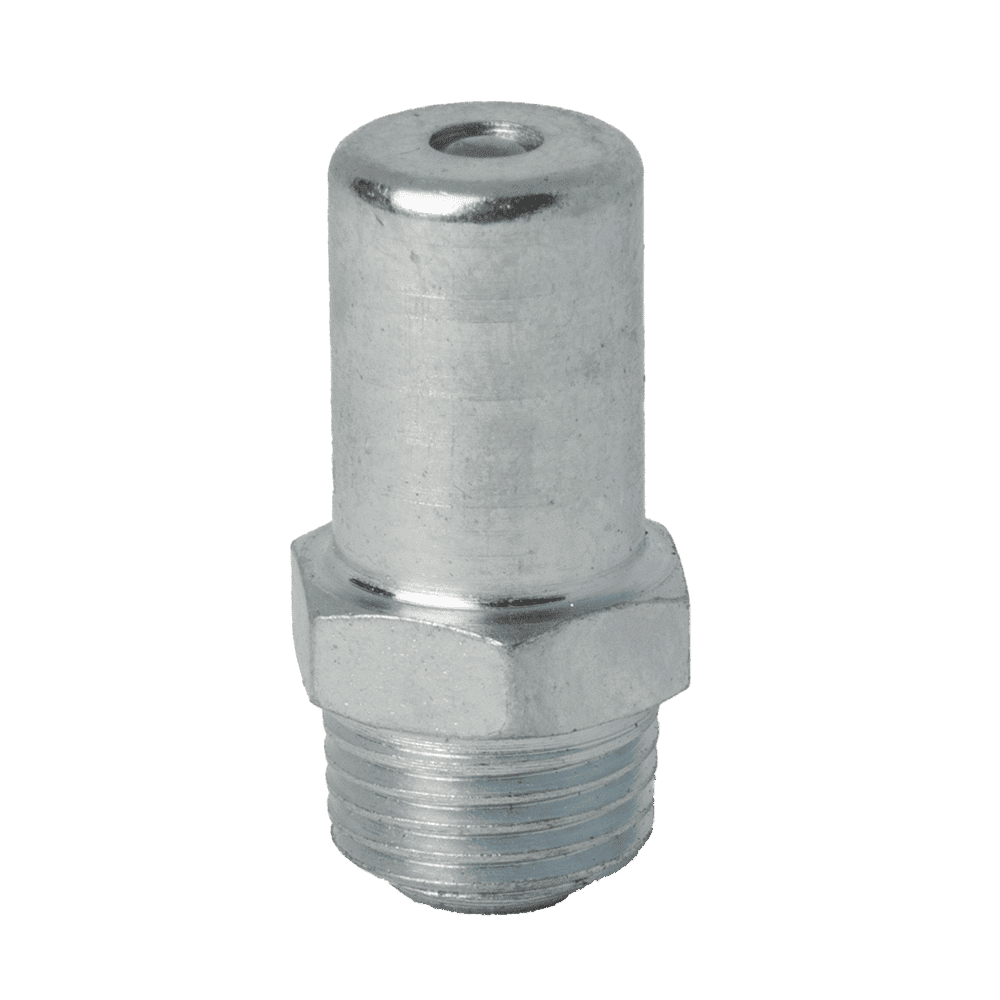

1/8″ x 28 BSP (G1/8″) Filler Nipple
34901599
Description
Bulk Filler nipples enable the filling from a bucket pump or other volume container into a grease gun or system.
The filler nipple, like a grease fitting, contains a spring and a steel ball which acts as a non-return and prevents dirt from contaminating the gun or system after filling
The Kingfisher code for the 1/8 BSP version is 34901599
1/8 NPT for American grease guns and systems are also available.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

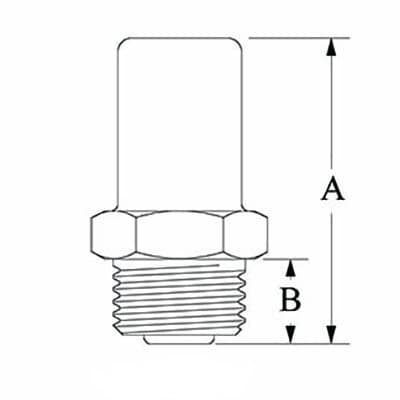

| Dimension A (mm) | 23 |
| Dimension B (mm) | 6 |
| Hardened | No |
| Hole | 1/8 British Pipe |
| Product Type | Accessories |
| Material | Mild Steel |
| Spanner Wrench Size | 11mm Hexagon |
| Thread | G1/8 x 28 BSPF |
| Thread Type | British |
| Zinc Plating | Zinc Trivalent Passivate |
