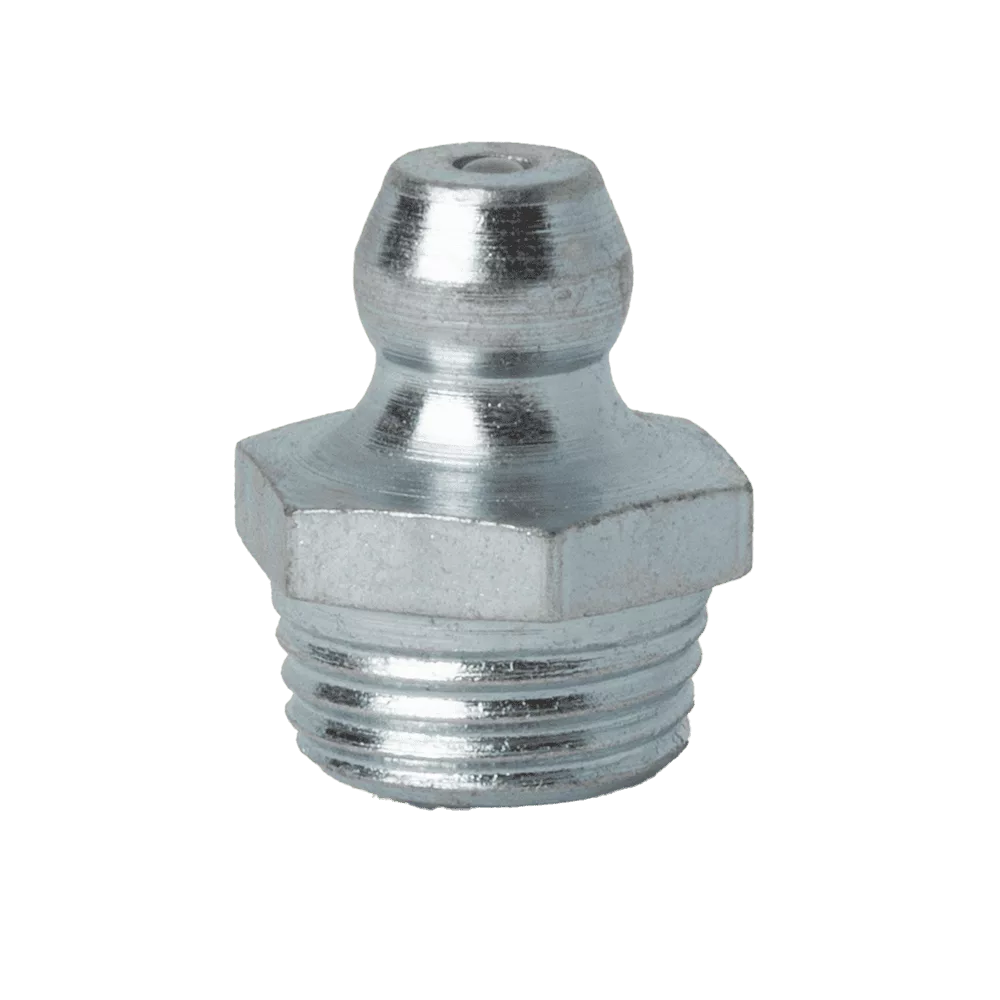

1/8” x 27 Thread Forming Straight Grease Fitting
225570
Description
1/8″ x 27 Thread Forming Hydraulic Straight Grease Fitting.
Premium Quality Steel. Case Hardened. Zinc Plated with Trivalent Passivate. RoHS and REACH compliant.
With carbon steel ball check to prevent the ingress of dirt only. Not to be used to retain back pressure.
Stress Relieved Spring to ensure long service life.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/8″ x 27 thread is 9.47-9.65mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Made exclusively in Britain. Worldwide Shipping.
Also available with Zinc Yellow Chromate. Code 205570. Limited Availability.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 0.6 |
| Dimension A (mm) | 15.2 |
| Dimension B (Inch) | 0.23 |
| Dimension B (mm) | 5.6 |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | SAE J534 |
| Material | Mild Steel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Trivalent Passivate |
