Product Code: MO1890

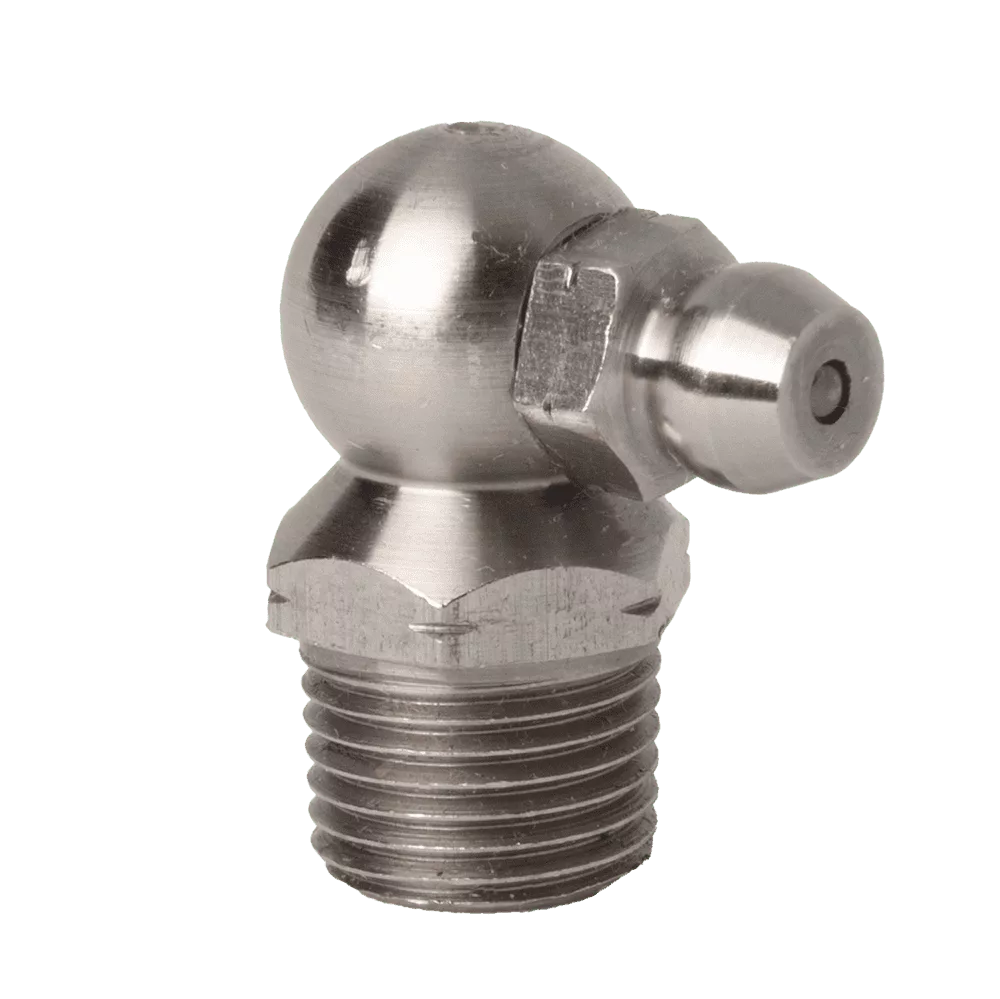

1/8″ x 27 PTF 90° Grease Fitting NiCu Alloy (Monel®) AS15005-5
MO1890
Description
1/8″ x 27 PTF Special Short 90° Hydraulic Grease Fitting.
Reference SAE AS15005-5
Material Reference SAE AS 35411.
Nickel Copper Alloy 400 (Monel®) Body and Ball. Inconel® 600 Spring – Stress Relieved
Material Certificates Available.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |
| Dimension A (Inch) | 1.063 MAX |
| Dimension A (mm) | 27 Max |
| Dimension B (Inch) | 0.31 |
| Dimension B (mm) | 7.9 |
| Dimension C (Inch) | 0.625 Max |
| Dimension C (mm) | 15.9 Max |
| Hardened | No |
| Hole | 1/8 American Pipe |
| International | AS 15005-1 |
| Product Type | Hydraulic Grease Nipple |
| Material | Ni/Cu Monel |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/8 x 27 PTF |
| Thread Type | American |
| Zinc Plating | No |
