1/4″ x 28 SAE-LT 90° Nickel Copper Alloy (Monel®) AS15004-3
MO1490
Description
The MO1490 grease fitting is a military and aerospace-grade lubrication fitting designed to meet stringent performance and durability requirements. It adheres to AS15004-3 and AS35411 (Aerospace Standards), which specifies the design, materials, and performance characteristics for grease fittings used in aviation and high-performance mechanical applications.
- Manufactured according to SAE AS15004-3
- Material Reference SAE AS35411.
- Nickel Copper Alloy 400 (Monel®) Body and Ball. Inconel® 600 Spring.
- DFARs Compliant – Material Certificates Available.
Additional information
| Angle | 90 |
|---|---|
| Ball Check | Yes |

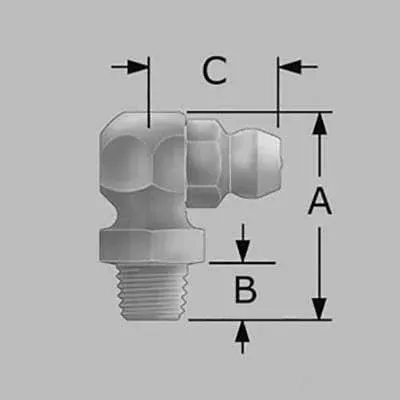

| Dimension A (Inch) | 3/4 (0.75) |
| Dimension B (Inch) | 3/16 (0.187) |
| Dimension C (Inch) | 17/32 (0.53) |
| Hardened | No |
| Hole | 1/4 UNF |
| International | AS15004-3 |
| Product Type | Hydraulic Grease Nipple |
| Material | Ni/Cu Monel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
