Product Code: 205552

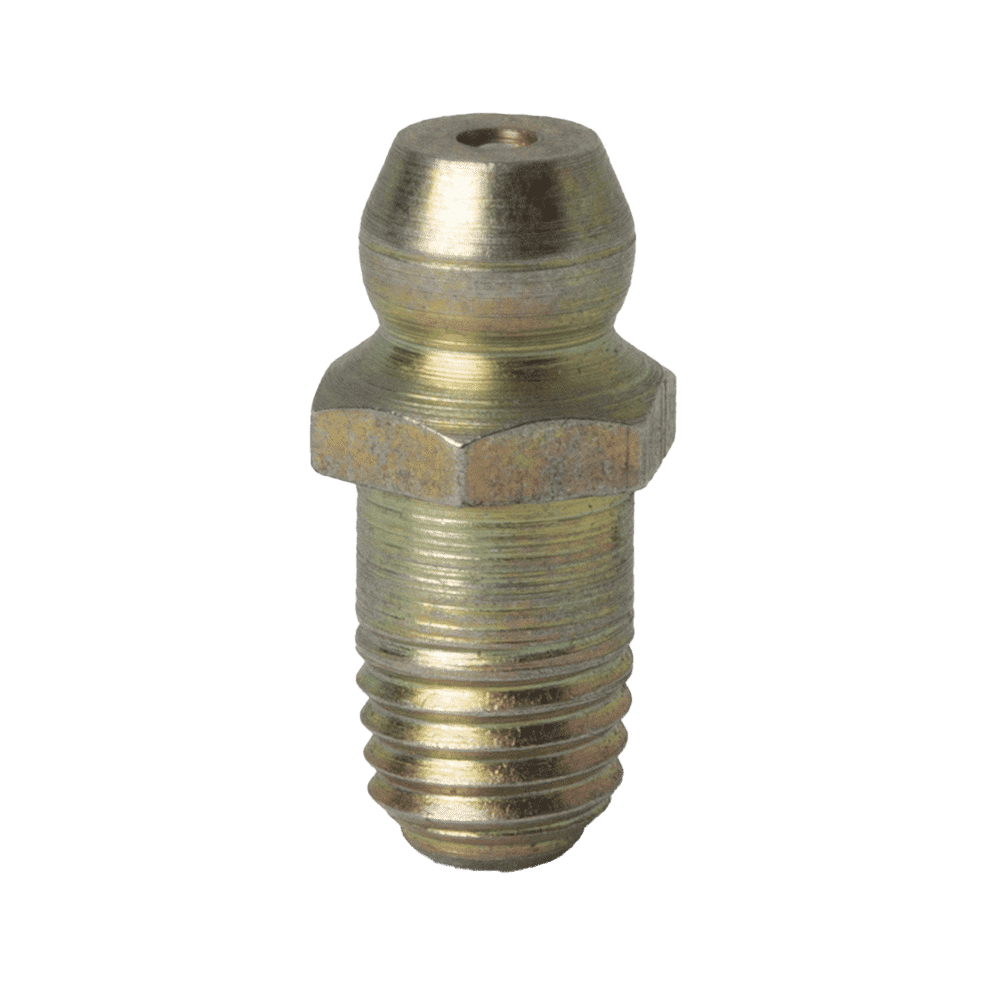

1/4″ x 28 Self-forming Straight Grease Fitting 11/16″ Long
205552
Description
Self-forming threads can be screwed or driven into an untapped hole. The size of the hole must be determined by the user of the straight grease fitting.
Avoid chamfering as a sharp edge to the hole helps the thread bite
Additional information
| Weight | 14 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |

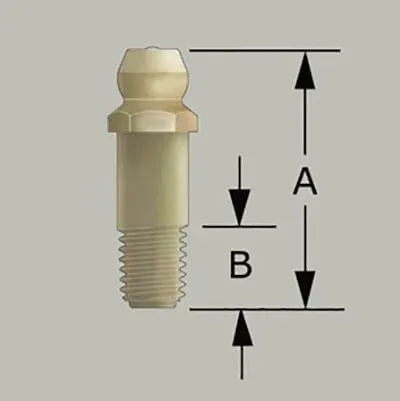

| Dimension A (Inch) | 0.67 |
| Dimension A (mm) | 17 |
| Dimension B (Inch) | 0.36 |
| Dimension B (mm) | 9.1 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | Thread to SAE J534 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 5/16" Hexagon |
| Thread | 1/4 x 28 Special Taper |
| Thread Type | Self-forming |
| Zinc Plating | Zinc Yellow Chromate |
