Product Code: MO1428

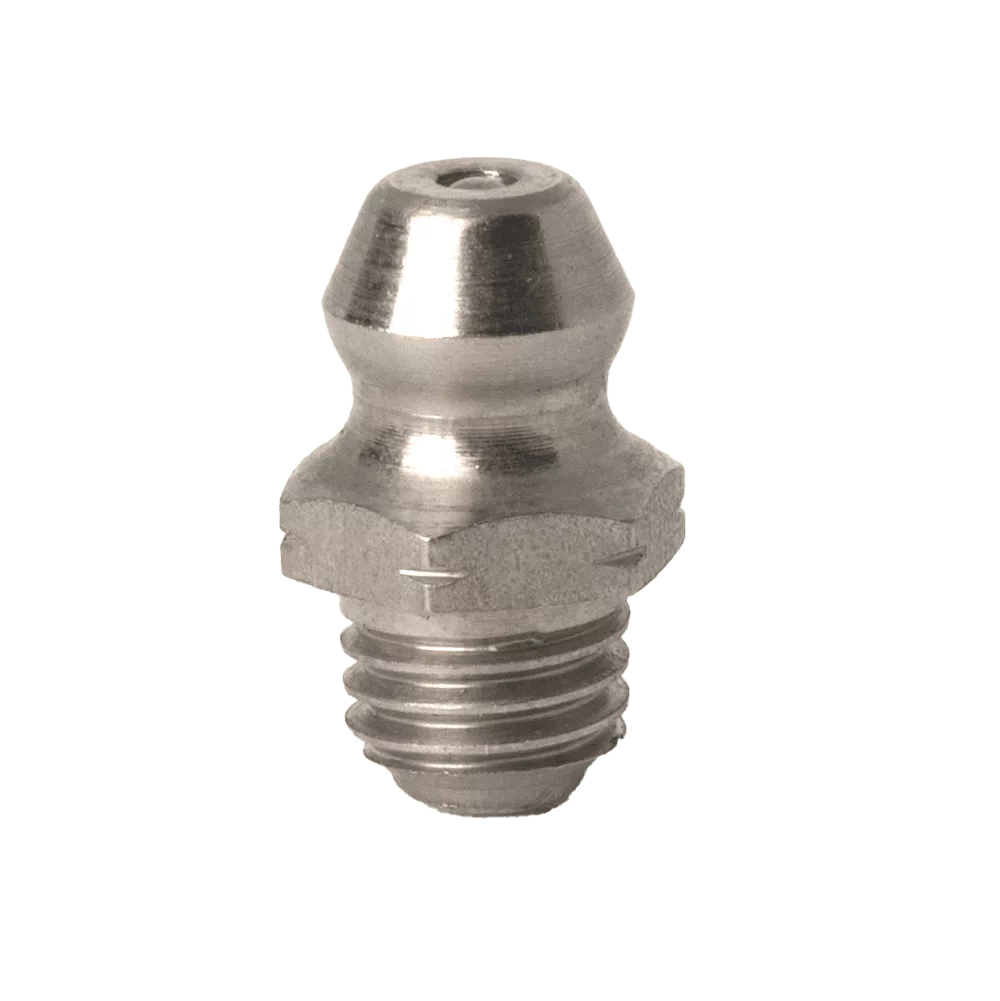

1/4 x 28 SAE-LT Nickel Copper Alloy (Monel®) Straight Grease Fitting AS15004-1
MO1428
Description
Manufactured according to SAE AS15004-1
Material Reference SAE AS 35411.
Nickel Copper Alloy 400 (Monel®) Body and Ball. Inconel® 600 Spring.
Material Certificates Available.
Additional information
| Weight | 12 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.54 |
| Dimension A (mm) | 13.7 |
| Dimension B (Inch) | 0.17 |
| Dimension B (mm) | 4.3 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | No |
| Hole | 1/4 UNF |
| International | AS 15004-1 |
| Product Type | Hydraulic Grease Nipple |
| Material | Ni/Cu Monel |
| Spanner Wrench Size | 5/16" Hexagon |
| Thread | 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
