Product Code: 310667

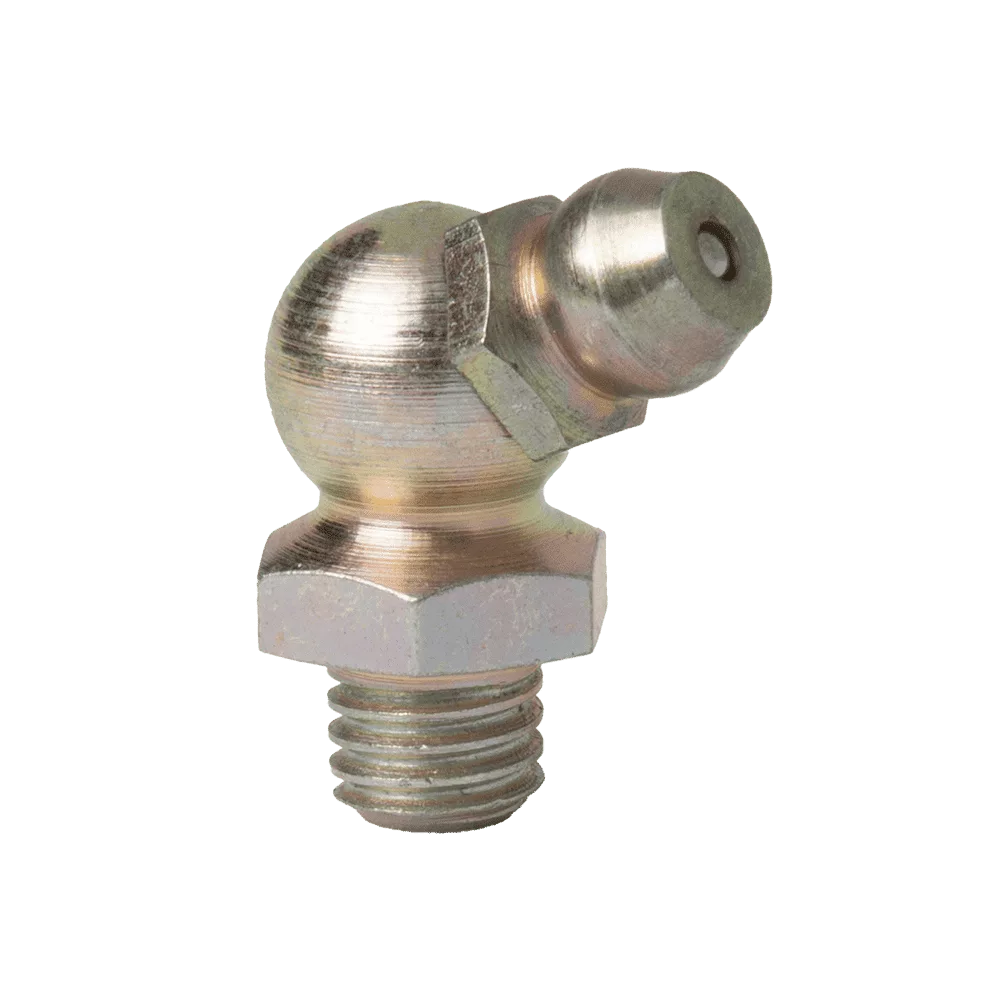

1/4″ x 26 BSF 67.5˚ Grease Fitting
310667
Description
1/4″ x 26 BSF 67.5˚ Grease Fitting.
Case Hardened and Zinc Plated with Yellow Chromate Finish.
Ball Check to prevent the ingress of dirt.
Stress Relieved Spring for prolonged service life.
Additional information
| Angle | 67.5 |
|---|---|
| Ball Check | Yes |

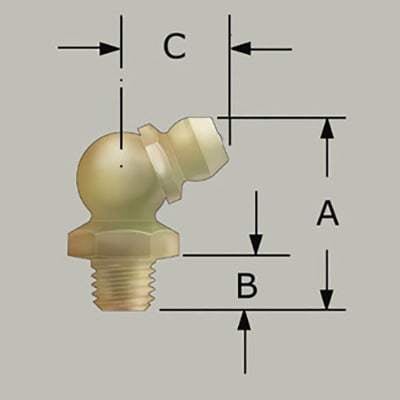

| Dimension A (Inch) | 0.76 |
| Dimension A (mm) | 19.3 |
| Dimension B (Inch) | 0.2 |
| Dimension B (mm) | 5.1 |
| Dimension C (Inch) | 0.41 |
| Dimension C (mm) | 10.4 |
| Hardened | Yes |
| Hole | 1/4 BSF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 3/8" Hexagon |
| Thread | 1/4 x 26 BSF |
| Thread Type | British |
| Zinc Plating | Zinc Yellow Chromate |
